Namespace http://diggsml.org/schemas/3
Annotations
Extended type based on AbstractLinearSamplingFeatureType. Adds elements
for transect type definition.

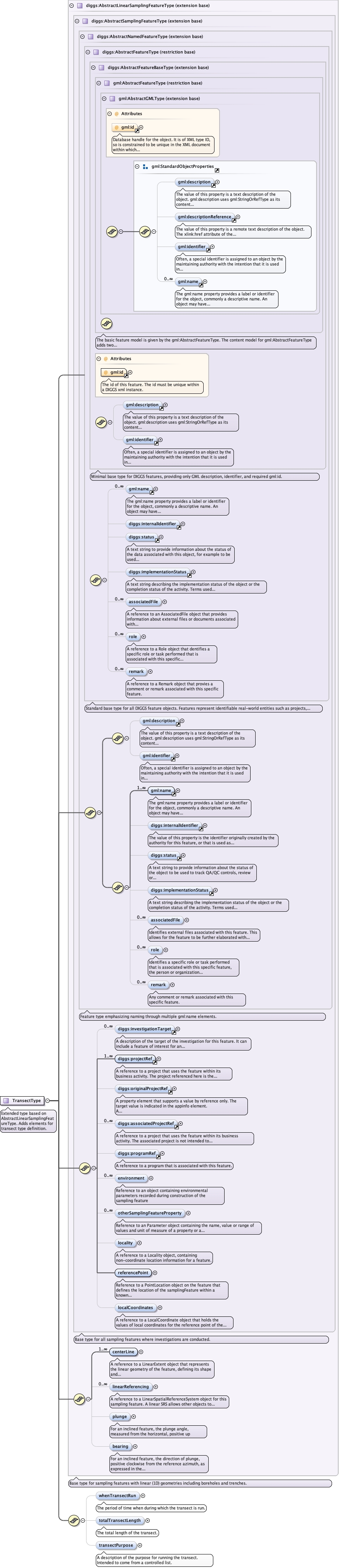

Diagram
Type extension of diggs:AbstractLinearSamplingFeatureType
Type hierarchy
Used by
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:programRef{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} ,
diggs:centerLine+ ,
diggs:linearReferencing* ,
diggs:plunge{0,1} ,
diggs:bearing{0,1} ,

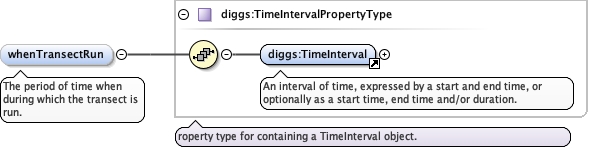

diggs:whenTransectRun{0,1} ,

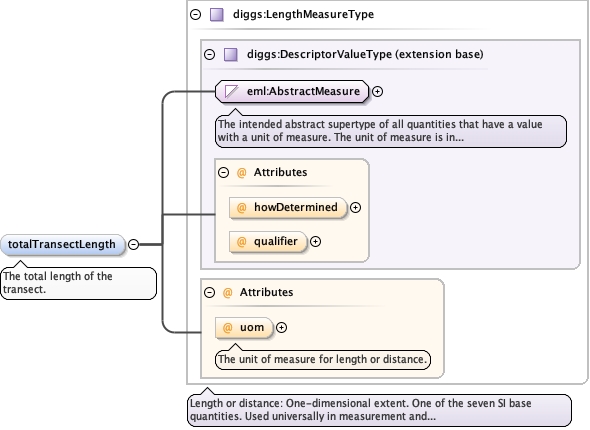

diggs:totalTransectLength{0,1} ,

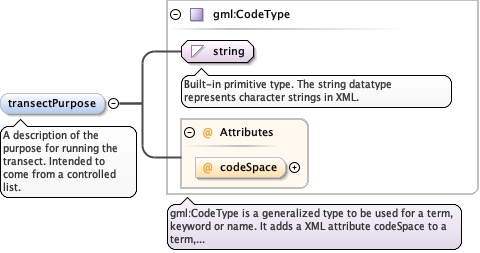

diggs:transectPurpose{0,1}
Children diggs:associatedFile diggs:associatedProjectRef diggs:bearing diggs:centerLine diggs:environment diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:linearReferencing diggs:localCoordinates diggs:locality diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:plunge diggs:programRef diggs:projectRef diggs:referencePoint diggs:remark diggs:role diggs:status diggs:totalTransectLength diggs:transectPurpose diggs:whenTransectRun gml:description gml:identifier gml:name
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtSamplingFeatures.xsd
