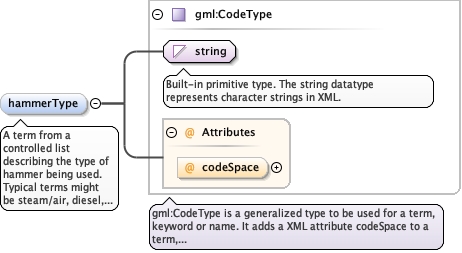

Element diggs:PileDriveHammerType / diggs:hammerType
Namespace http://diggsml.org/schemas/3
Annotations

A term from a controlled list describing the type of
hammer being used. Typical terms might be steam/air, diesel,
hydraulic, vibratory, etc.)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

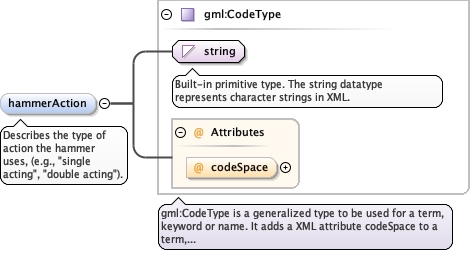

Element diggs:PileDriveHammerType / diggs:hammerAction
Namespace http://diggsml.org/schemas/3
Annotations

Describes the type of action the hammer uses, (e.g.,
"single acting", "double acting").
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

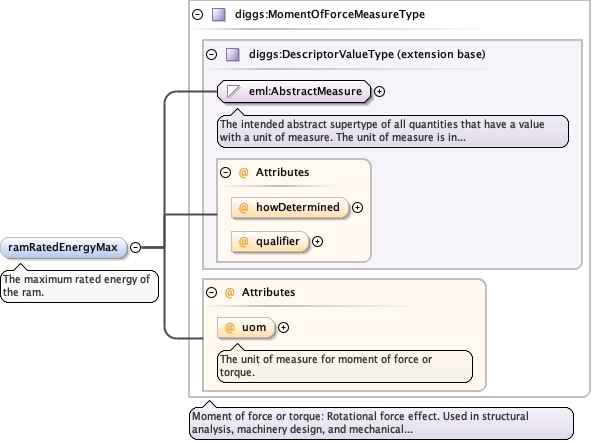

Element diggs:PileDriveHammerType / diggs:ramRatedEnergyMax
Namespace http://diggsml.org/schemas/3
Annotations

The maximum rated energy of the ram.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType
Type diggs:MomentOfForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MomentOfForceUomEnumType optional
The unit of measure for moment of force or torque.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
Element diggs:PileDriveHammerType / diggs:ramRatedEnergyMin
Namespace http://diggsml.org/schemas/3
Annotations

The minimum rated energy of the ram.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType
Type diggs:MomentOfForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MomentOfForceUomEnumType optional
The unit of measure for moment of force or torque.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
Element diggs:PileDriveHammerType / diggs:ramWeight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the ram or hammer weight.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

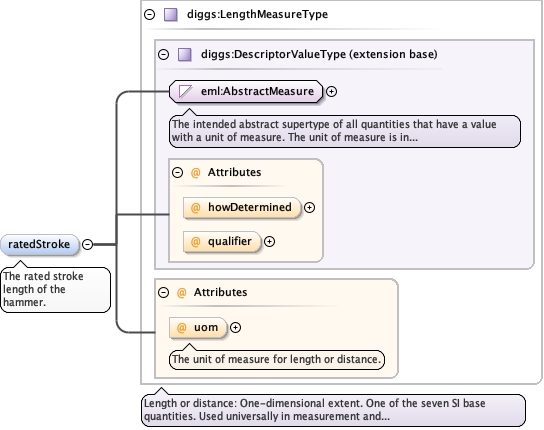

Element diggs:PileDriveHammerType / diggs:ratedStroke
Namespace http://diggsml.org/schemas/3
Annotations

The rated stroke length of the hammer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

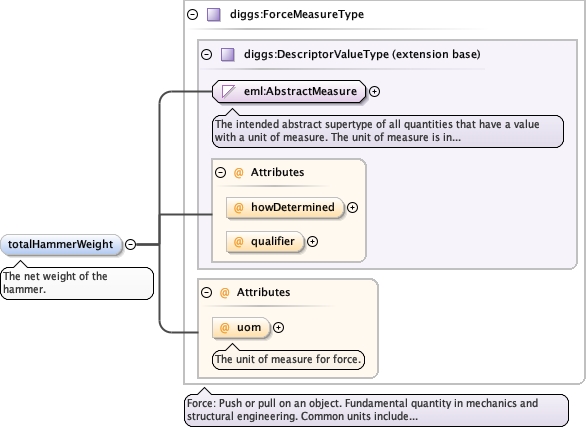

Element diggs:PileDriveHammerType / diggs:totalHammerWeight
Namespace http://diggsml.org/schemas/3
Annotations

The net weight of the hammer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

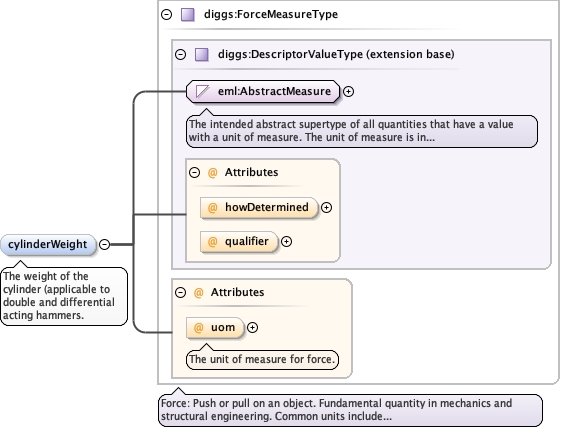

Element diggs:PileDriveHammerType / diggs:cylinderWeight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the cylinder (applicable to double and
differential acting hammers.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

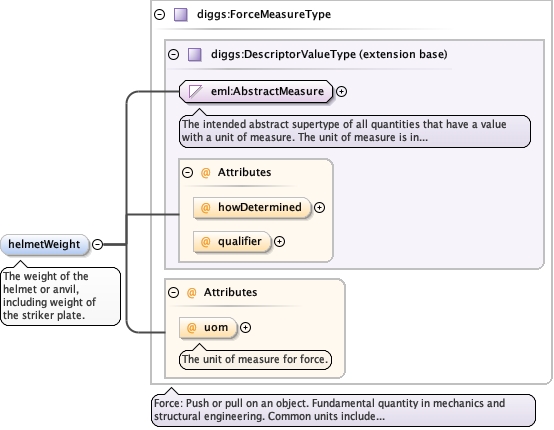

Element diggs:PileDriveHammerType / diggs:helmetWeight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the helmet or anvil, including weight of
the striker plate.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
Element diggs:PileDriveHammerType / diggs:pistonAreaDblActing
Namespace http://diggsml.org/schemas/3
Annotations

The area of the piston for a double acting
hammer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType
Type diggs:AreaMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

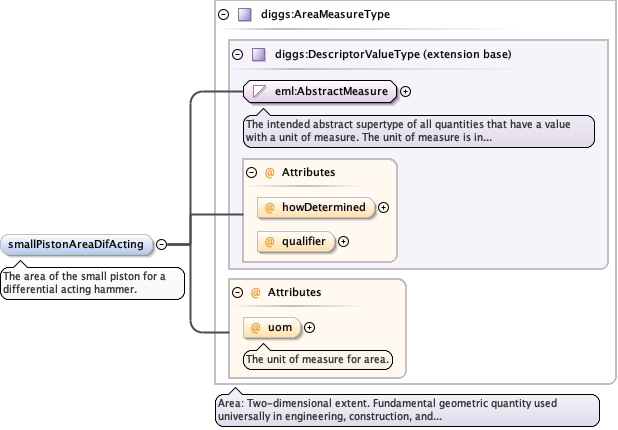

Element diggs:PileDriveHammerType / diggs:smallPistonAreaDifActing
Namespace http://diggsml.org/schemas/3
Annotations

The area of the small piston for a differential acting
hammer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType
Type diggs:AreaMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

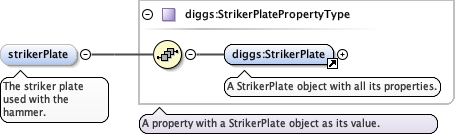

Element diggs:PileDriveHammerType / diggs:strikerPlate
Namespace http://diggsml.org/schemas/3
Annotations

The striker plate used with the hammer.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_StrikerPlate.tmp#StrikerPlateDeepFoundation_xsd_Complex_Type_diggs_StrikerPlatePropertyType.tmp#StrikerPlatePropertyType
Type diggs:StrikerPlatePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:StrikerPlate
Instance

<diggs:strikerPlate xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:StrikerPlate gml:id="">{1,1}</diggs:StrikerPlate>
</diggs:strikerPlate>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
Element diggs:PileDriveHammerType / diggs:hammerCushion
Namespace http://diggsml.org/schemas/3
Annotations

A property that contains a Cushion object that describes
the hammer cushion. Multiple Cushon objects can be associated witht
the hammer to account for multiple drives that might occur for the
pile driving activity if the cushion is changed out between
drives.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_Cushion.tmp#CushionDeepFoundation_xsd_Complex_Type_diggs_CushionPropertyType.tmp#CushionPropertyType
Type diggs:CushionPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Cushion
Instance

<diggs:hammerCushion xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Cushion gml:id="">{1,1}</diggs:Cushion>
</diggs:hammerCushion>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
Element diggs:PileDriveHammerType / diggs:blowsPerMinuteMin
Namespace http://diggsml.org/schemas/3
Annotations

The minimum blows per minute the hammer can
deliver.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
Element diggs:PileDriveHammerType / diggs:blowsPerMinuteMax
Namespace http://diggsml.org/schemas/3
Annotations

The maximum blows per minute the hammer can
deliver.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

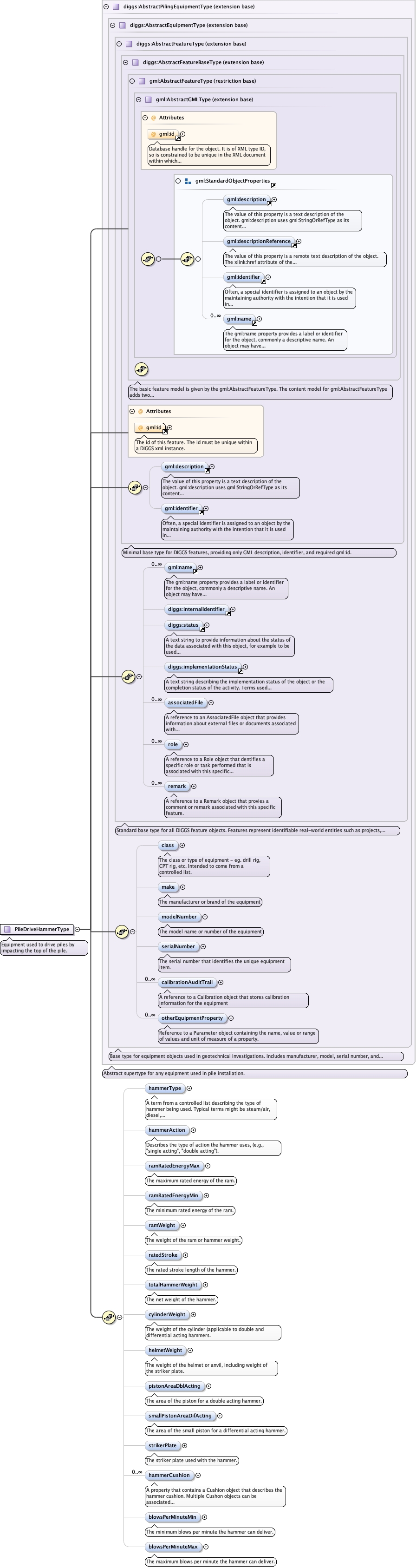

Complex Type diggs:PileDriveHammerType
Namespace http://diggsml.org/schemas/3
Annotations

Equipment used to drive piles by impacting the top of the
pile.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeDeepFoundation_xsd_Complex_Type_diggs_AbstractPilingEquipmentType.tmp#AbstractPilingEquipmentTypeDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_hammerTypeDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_hammerActionDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ramRatedEnergyMaxDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ramRatedEnergyMinDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ramWeightDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ratedStrokeDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_totalHammerWeightDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_cylinderWeightDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_helmetWeightDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_pistonAreaDblActingDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_smallPistonAreaDifActingDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_strikerPlateDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_hammerCushionDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_blowsPerMinuteMinDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_blowsPerMinuteMax
Type extension of diggs:AbstractPilingEquipmentType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:associatedFile, diggs:blowsPerMinuteMax, diggs:blowsPerMinuteMin, diggs:calibrationAuditTrail, diggs:class, diggs:cylinderWeight, diggs:hammerAction, diggs:hammerCushion, diggs:hammerType, diggs:helmetWeight, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:pistonAreaDblActing, diggs:ramRatedEnergyMax, diggs:ramRatedEnergyMin, diggs:ramWeight, diggs:ratedStroke, diggs:remark, diggs:role, diggs:serialNumber, diggs:smallPistonAreaDifActing, diggs:status, diggs:strikerPlate, diggs:totalHammerWeight, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
