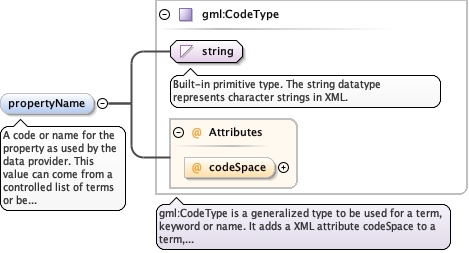

A code or name for the property as used by the dataprovider. This value can come from a controlled list of terms or bean uncontrolled text string. The value would be commonly used tolabel a column of a log sheet or provide other local meaning to theproperty. The value of mnemonic should be unique for all of theproperties included in the dataValue block transmitted as part ofthis measurement.
The official name of this property as derived from adictionary of defined terms. The codespace value must be populatedand should contain the URN to allow applications to validate thisvalue as a known property.

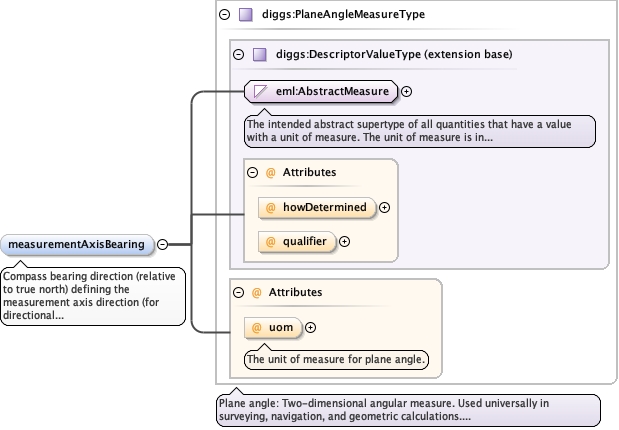

Compass bearing direction (relative to true north)defining the measurement axis direction (for directionalmeasurements, eg. component of an extensometer, accelerometer,etc.)

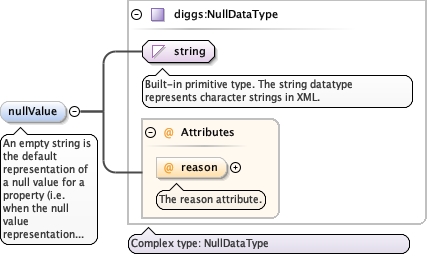

An empty string is the default representation of a nullvalue for a property (i.e. when the null value representation is notexplicitly defined). This value defines a value to be interpreted asnull for this property in the dataValues block. The reason attributecan be used to define the reason for the null value, (eg. witheld).This can be customized with an other: qualifier (eg. other:belowdetection limit) or reference a URI for a more completedefinition.

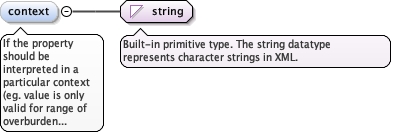

If the property should be interpreted in a particularcontext (eg. value is only valid for range of overburden pressures,etc.), then the context of the property is describedhere.

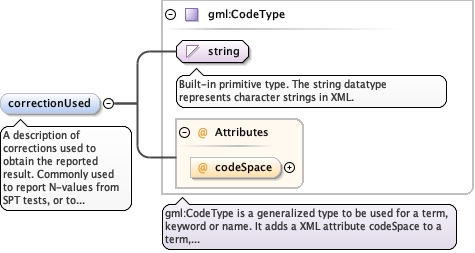

A description of corrections used to obtain the reportedresult. Commonly used to report N-values from SPT tests, or todescribe any other adjustments made to the reported data. Can comefrom a controlled list.

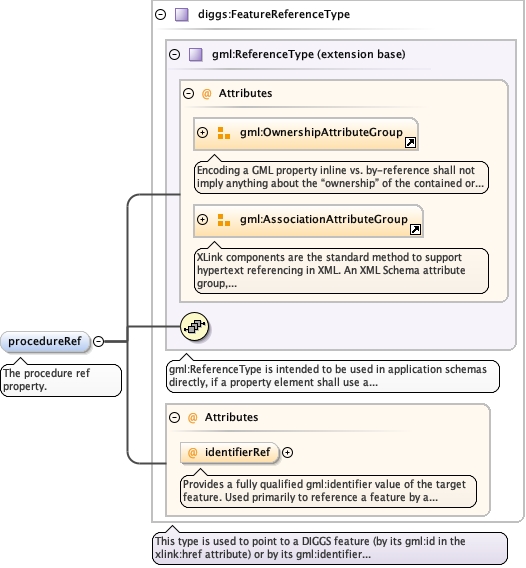

Provides a fully qualified gml:identifier value of the targetfeature. Used primarily to reference a feature by a globally uniqueidentifier as opposed to the gml:id
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows:onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation contextreplace - load the resource in the same window, frame, pane, or other presentation contextembed - load ending resource in place of the presentation of the starting resourceother - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained
A property element that supports a value by referenceonly. The target value is indicated in the appinfoelement.

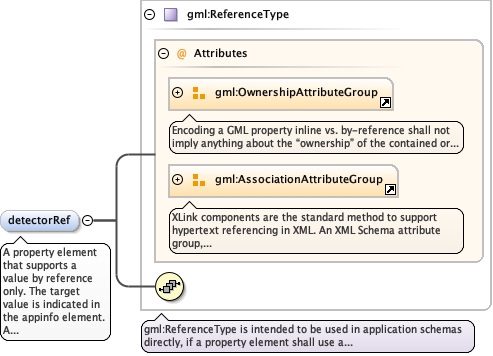

A reference to the source detector within a sensor usedto measure this property, if applicable. Generally used for welllog,downhole logging procedures, monitorin equipment, or MWDreadings.
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows:onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation contextreplace - load the resource in the same window, frame, pane, or other presentation contextembed - load ending resource in place of the presentation of the starting resourceother - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained

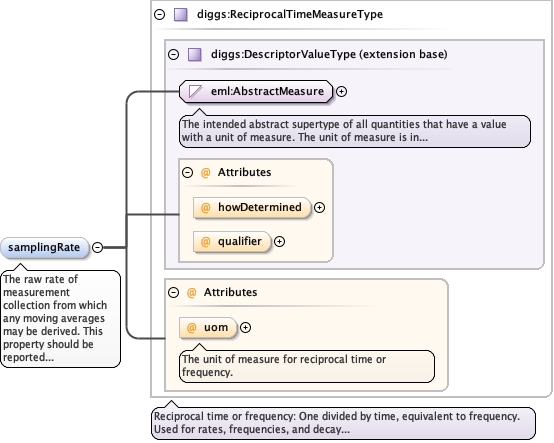

The raw rate of measurement collection from which anymoving averages may be derived. This property should be reported ifthe value of the measurementTechnique property is movingaverage.
Database handle for the object. It is of XML type ID, so is constrained to beunique in the XML document within which it occurs. An external identifier for the object inthe form of a URI may be constructed using standard XML and XPointer methods. This is doneby concatenating the URI for the document, a fragment separator, and the value of the idattribute.
