Element diggs:PlssType / diggs:township
Namespace http://diggsml.org/schemas/3
Annotations

An approximately 6-mile square area of land, containing
36 sections. Also, a horizontal row of townships in the
PLSS.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd
Element diggs:PlssType / diggs:range
Namespace http://diggsml.org/schemas/3
Annotations

A vertical column of townships in the
PLSS.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd

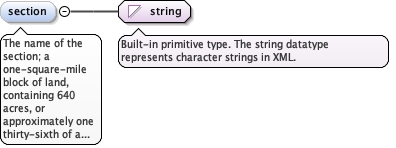

Element diggs:PlssType / diggs:section
Namespace http://diggsml.org/schemas/3
Annotations

The name of the section; a one-square-mile block of land,
containing 640 acres, or approximately one thirty-sixth of a
township. Due to the curvature of the Earth, sections may
occasionally be slightly smaller than one square
mile.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd

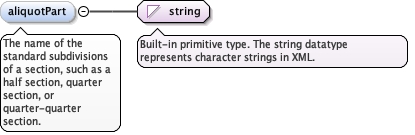

Element diggs:PlssType / diggs:aliquotPart
Namespace http://diggsml.org/schemas/3
Annotations

The name of the standard subdivisions of a section, such
as a half section, quarter section, or quarter-quarter
section.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd

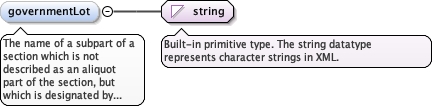

Element diggs:PlssType / diggs:governmentLot
Namespace http://diggsml.org/schemas/3
Annotations

The name of a subpart of a section which is not described
as an aliquot part of the section, but which is designated by
number, for example, Lot 3. A lot may be regular or irregular in
shape, and its acreage may vary from that of regular aliquot parts.
These lots frequently border water areas excluded from the
PLSS.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd

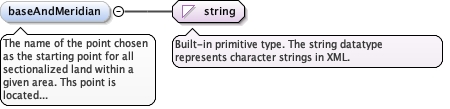

Element diggs:PlssType / diggs:baseAndMeridian
Namespace http://diggsml.org/schemas/3
Annotations

The name of the point chosen as the starting point for
all sectionalized land within a given area. Ths point is located at
the intersection of a base line (parallel of latitude, or
approximately a parallel of latitude), and a principal
meridian.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd

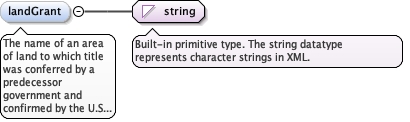

Element diggs:PlssType / diggs:landGrant
Namespace http://diggsml.org/schemas/3
Annotations

The name of an area of land to which title was conferred
by a predecessor government and confirmed by the U.S Government
after the territory in which it is situated was acquired by the
United States. These lands were never part of the original public
domain and were not subject to subdivision by the
PLSS.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd

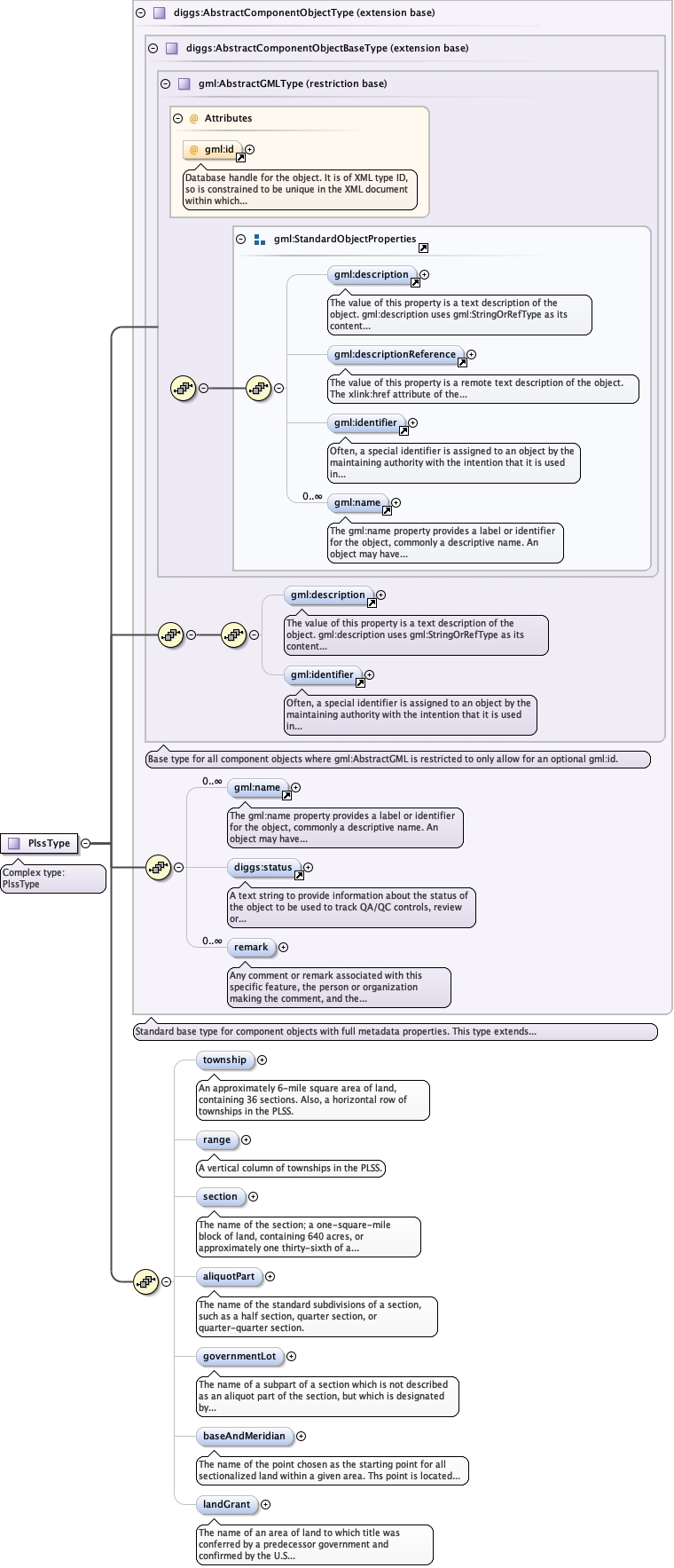

Complex Type diggs:PlssType
Namespace http://diggsml.org/schemas/3
Annotations

Complex type: PlssType
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_townshipCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_rangeCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_sectionCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_aliquotPartCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_governmentLotCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_baseAndMeridianCommon_xsd_Complex_Type_diggs_PlssType.tmp#PlssType_landGrant
Type extension of diggs:AbstractComponentObjectType
Type hierarchy
Used by
Element diggs:PLSS
Model
Children diggs:aliquotPart, diggs:baseAndMeridian, diggs:governmentLot, diggs:landGrant, diggs:range, diggs:remark, diggs:section, diggs:status, diggs:township, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd
