Element diggs:ComponentObjectNoDescriptionType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

Any comment or remark associated with this specific
object.

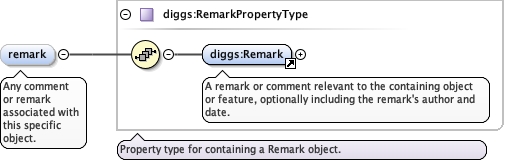

Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd
Complex Type diggs:ComponentObjectNoDescriptionType
Namespace http://diggsml.org/schemas/3
Annotations

Restricted component object type without description or name elements.
Restricts AbstractComponentObjectType to remove description and name elements,
retaining only identifier, status, and remark properties. Used for component objects
where description is managed externally or not needed.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Complex_Type_diggs_ComponentObjectNoDescriptionType.tmp#ComponentObjectNoDescriptionType_remark
Type restriction of diggs:AbstractComponentObjectType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:remark, diggs:status, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd
