Complex Type diggs:VolumePerTimePerVolumeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Reciprocal time or specific flow rate: Volume flow rate per unit volume, equivalent to reciprocal time. Used for turnover rates and specific injection/production rates. Common units include 1/s, (m³/s)/m³, and bbl/(d·acre·ft).

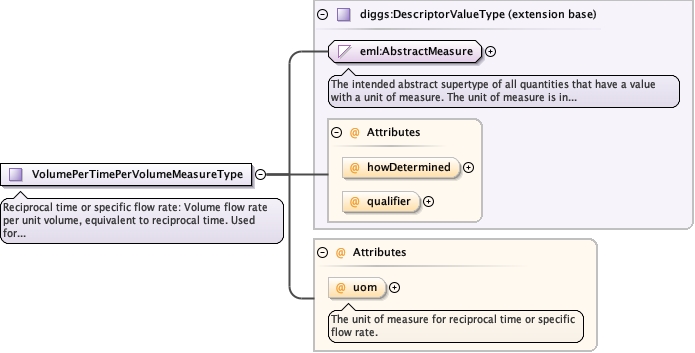

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimePerVolumeMeasureType.tmp#VolumePerTimePerVolumeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimePerVolumeUomEnumType optional
The unit of measure for reciprocal time or specific flow rate.
Source

<complexType name="VolumePerTimePerVolumeMeasureType">
  <annotation>
    <documentation>Reciprocal time or specific flow rate: Volume flow rate per unit volume, equivalent to reciprocal time. Used for turnover rates and specific injection/production rates. Common units include 1/s, (m³/s)/m³, and bbl/(d·acre·ft).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:VolumePerTimePerVolumeUomEnumType">
        <annotation>
          <documentation>The unit of measure for reciprocal time or specific flow rate.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:VolumePerTimePerVolumeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for reciprocal time or specific flow rate.
Type diggs:VolumePerTimePerVolumeUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:VolumePerTimePerVolumeUomEnumType">
  <annotation>
    <documentation>The unit of measure for reciprocal time or specific flow rate.</documentation>
  </annotation>
</attribute>
