Complex Type diggs:VolumePerTimePerTimeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Volume acceleration or second derivative of volume: Rate of change of volume flow rate. Used in transient flow analysis and unsteady pumping. Common units include m³/s², bbl/h², ft³/s², (m³/d)/d, and gal/(min²).

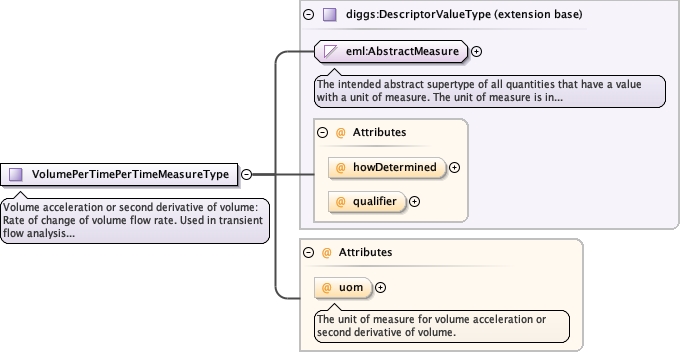

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimePerTimeMeasureType.tmp#VolumePerTimePerTimeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimePerTimeUomEnumType optional
The unit of measure for volume acceleration or second derivative of volume.
Source

<complexType name="VolumePerTimePerTimeMeasureType">
  <annotation>
    <documentation>Volume acceleration or second derivative of volume: Rate of change of volume flow rate. Used in transient flow analysis and unsteady pumping. Common units include m³/s², bbl/h², ft³/s², (m³/d)/d, and gal/(min²).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:VolumePerTimePerTimeUomEnumType">
        <annotation>
          <documentation>The unit of measure for volume acceleration or second derivative of volume.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:VolumePerTimePerTimeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for volume acceleration or second derivative of volume.
Type diggs:VolumePerTimePerTimeUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:VolumePerTimePerTimeUomEnumType">
  <annotation>
    <documentation>The unit of measure for volume acceleration or second derivative of volume.</documentation>
  </annotation>
</attribute>
