Complex Type diggs:VolumePerRotationMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Volume displacement per revolution: Volume displaced per rotation. Used for positive displacement pumps and motors. Common units include m³/revolution, m³/rad, and ft³/rad.

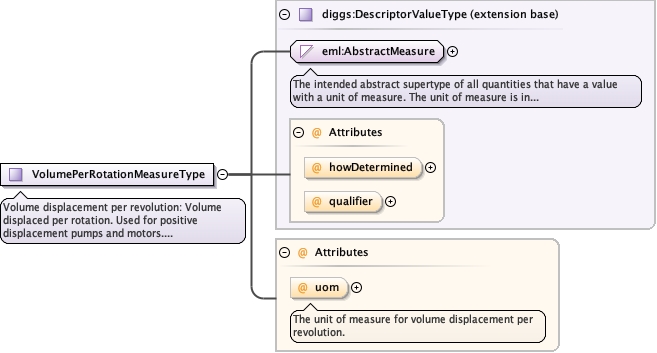

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerRotationMeasureType.tmp#VolumePerRotationMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerRotationUomEnumType optional
The unit of measure for volume displacement per revolution.
Source

<complexType name="VolumePerRotationMeasureType">
  <annotation>
    <documentation>Volume displacement per revolution: Volume displaced per rotation. Used for positive displacement pumps and motors. Common units include m³/revolution, m³/rad, and ft³/rad.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:VolumePerRotationUomEnumType">
        <annotation>
          <documentation>The unit of measure for volume displacement per revolution.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:VolumePerRotationMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for volume displacement per revolution.
Type diggs:VolumePerRotationUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:VolumePerRotationUomEnumType">
  <annotation>
    <documentation>The unit of measure for volume displacement per revolution.</documentation>
  </annotation>
</attribute>
