Complex Type diggs:VolumePerMassMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Specific volume: Volume per unit mass. Reciprocal of density. Used in thermodynamics and phase behavior. Common units include m³/kg, ft³/lbm, dm³/kg, L/kg, and gal/lbm.

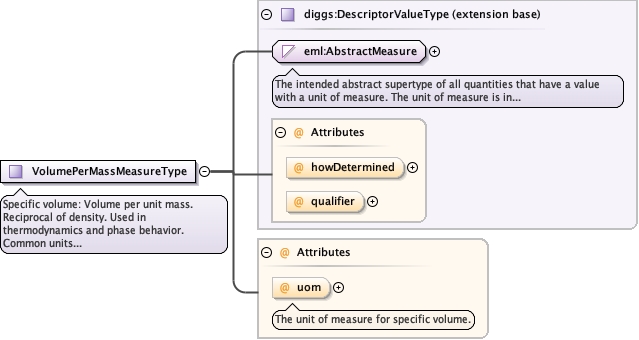

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerMassMeasureType.tmp#VolumePerMassMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerMassUomEnumType optional
The unit of measure for specific volume.
Source

<complexType name="VolumePerMassMeasureType">
  <annotation>
    <documentation>Specific volume: Volume per unit mass. Reciprocal of density. Used in thermodynamics and phase behavior. Common units include m³/kg, ft³/lbm, dm³/kg, L/kg, and gal/lbm.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:VolumePerMassUomEnumType">
        <annotation>
          <documentation>The unit of measure for specific volume.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:VolumePerMassMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for specific volume.
Type diggs:VolumePerMassUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:VolumePerMassUomEnumType">
  <annotation>
    <documentation>The unit of measure for specific volume.</documentation>
  </annotation>
</attribute>
