Complex Type diggs:VolumeFlowRatePerVolumeFlowRateMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Volume flow ratio or gas-liquid ratio: Dimensionless ratio of volume flow rates. Used for gas-liquid ratio (GLR), flow splits, and volume ratios. Commonly expressed as percent (%), fraction, Euclid, or specific ratios like (m³/d)/(m³/d) or million ft³/d per bbl/d.

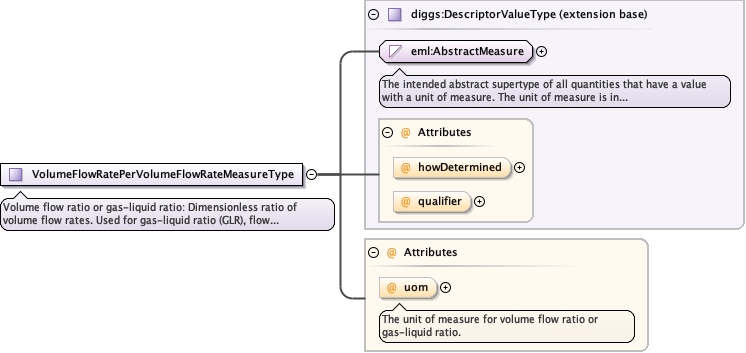

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeFlowRatePerVolumeFlowRateMeasureType.tmp#VolumeFlowRatePerVolumeFlowRateMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeFlowRatePerVolumeFlowRateUomEnumType optional
The unit of measure for volume flow ratio or gas-liquid ratio.
Source

<complexType name="VolumeFlowRatePerVolumeFlowRateMeasureType">
  <annotation>
    <documentation>Volume flow ratio or gas-liquid ratio: Dimensionless ratio of volume flow rates. Used for gas-liquid ratio (GLR), flow splits, and volume ratios. Commonly expressed as percent (%), fraction, Euclid, or specific ratios like (m³/d)/(m³/d) or million ft³/d per bbl/d.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:VolumeFlowRatePerVolumeFlowRateUomEnumType">
        <annotation>
          <documentation>The unit of measure for volume flow ratio or gas-liquid ratio.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:VolumeFlowRatePerVolumeFlowRateMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for volume flow ratio or gas-liquid ratio.
Type diggs:VolumeFlowRatePerVolumeFlowRateUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:VolumeFlowRatePerVolumeFlowRateUomEnumType">
  <annotation>
    <documentation>The unit of measure for volume flow ratio or gas-liquid ratio.</documentation>
  </annotation>
</attribute>
