Complex Type diggs:TimePerLengthMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Slowness or reciprocal velocity: Time per unit distance. Used in seismic analysis (slowness), transit time measurements, and some rate expressions. Common units include s/m, ms/m, µs/m, s/ft, µs/ft, min/ft, and h/km.

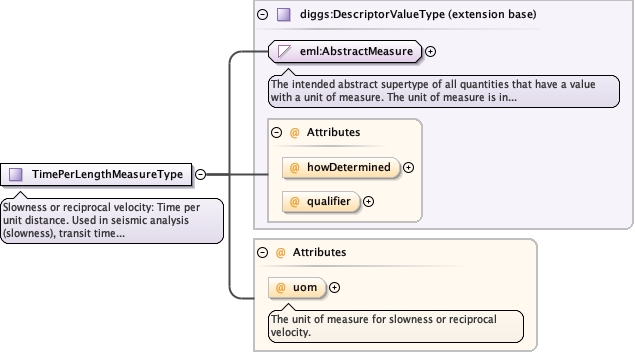

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimePerLengthMeasureType.tmp#TimePerLengthMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimePerLengthUomEnumType optional
The unit of measure for slowness or reciprocal velocity.
Source

<complexType name="TimePerLengthMeasureType">
  <annotation>
    <documentation>Slowness or reciprocal velocity: Time per unit distance. Used in seismic analysis (slowness), transit time measurements, and some rate expressions. Common units include s/m, ms/m, µs/m, s/ft, µs/ft, min/ft, and h/km.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:TimePerLengthUomEnumType">
        <annotation>
          <documentation>The unit of measure for slowness or reciprocal velocity.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:TimePerLengthMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for slowness or reciprocal velocity.
Type diggs:TimePerLengthUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:TimePerLengthUomEnumType">
  <annotation>
    <documentation>The unit of measure for slowness or reciprocal velocity.</documentation>
  </annotation>
</attribute>
