Complex Type diggs:ThermalInsulanceMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Thermal resistance or R-value: Resistance to heat flow. Used in building insulation specifications and thermal barrier analysis. Common units include (K·m²)/W, (°F·ft²·h)/Btu, and K·m²/kW.

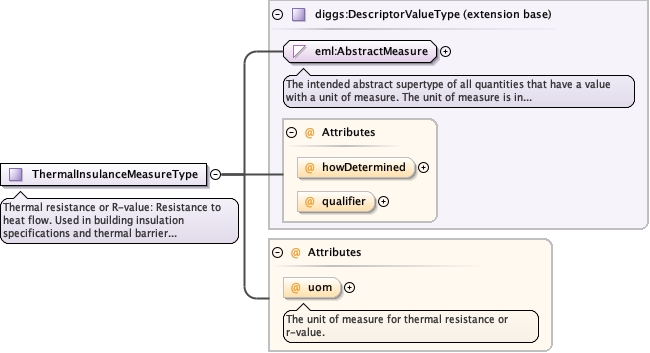

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermalInsulanceMeasureType.tmp#ThermalInsulanceMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ThermalInsulanceUomEnumType optional
The unit of measure for thermal resistance or r-value.
Source

<complexType name="ThermalInsulanceMeasureType">
  <annotation>
    <documentation>Thermal resistance or R-value: Resistance to heat flow. Used in building insulation specifications and thermal barrier analysis. Common units include (K·m²)/W, (°F·ft²·h)/Btu, and K·m²/kW.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:ThermalInsulanceUomEnumType">
        <annotation>
          <documentation>The unit of measure for thermal resistance or r-value.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:ThermalInsulanceMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for thermal resistance or r-value.
Type diggs:ThermalInsulanceUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:ThermalInsulanceUomEnumType">
  <annotation>
    <documentation>The unit of measure for thermal resistance or r-value.</documentation>
  </annotation>
</attribute>
