Complex Type diggs:SpecificHeatCapacityMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Specific heat capacity: Heat capacity per unit mass. Material property fundamental to thermal analysis. Common units include J/(kg·K), kJ/(kg·K), Btu/(lbm·°F), and cal/(g·K).

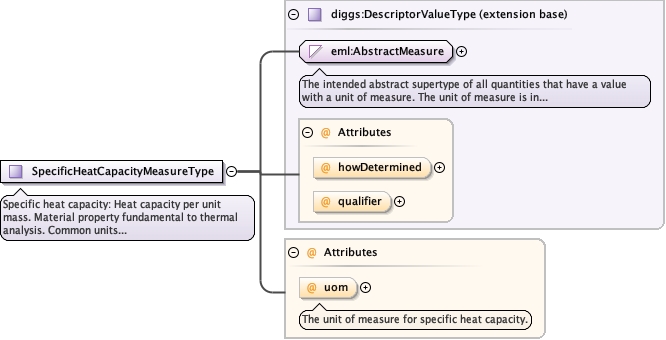

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_SpecificHeatCapacityMeasureType.tmp#SpecificHeatCapacityMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:SpecificHeatCapacityUomEnumType optional
The unit of measure for specific heat capacity.
Source

<complexType name="SpecificHeatCapacityMeasureType">
  <annotation>
    <documentation>Specific heat capacity: Heat capacity per unit mass. Material property fundamental to thermal analysis. Common units include J/(kg·K), kJ/(kg·K), Btu/(lbm·°F), and cal/(g·K).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:SpecificHeatCapacityUomEnumType">
        <annotation>
          <documentation>The unit of measure for specific heat capacity.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:SpecificHeatCapacityMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for specific heat capacity.
Type diggs:SpecificHeatCapacityUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:SpecificHeatCapacityUomEnumType">
  <annotation>
    <documentation>The unit of measure for specific heat capacity.</documentation>
  </annotation>
</attribute>
