Complex Type diggs:ReciprocalTimeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Reciprocal time or frequency: One divided by time, equivalent to frequency. Used for rates, frequencies, and decay constants. Common units include 1/s (per second, equivalent to Hz), 1/h, 1/min, and 1/d.

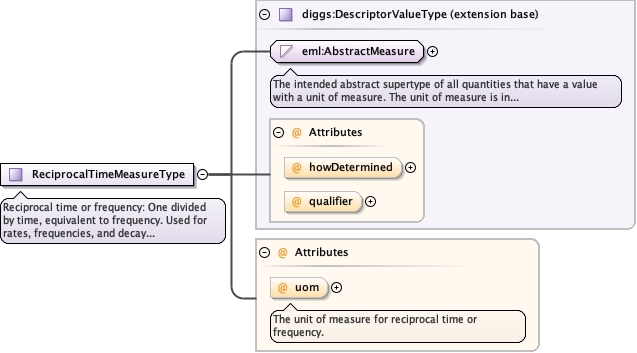

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ReciprocalTimeMeasureType.tmp#ReciprocalTimeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ReciprocalTimeUomEnumType optional
The unit of measure for reciprocal time or frequency.
Source

<complexType name="ReciprocalTimeMeasureType">
  <annotation>
    <documentation>Reciprocal time or frequency: One divided by time, equivalent to frequency. Used for rates, frequencies, and decay constants. Common units include 1/s (per second, equivalent to Hz), 1/h, 1/min, and 1/d.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:ReciprocalTimeUomEnumType">
        <annotation>
          <documentation>The unit of measure for reciprocal time or frequency.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:ReciprocalTimeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for reciprocal time or frequency.
Type diggs:ReciprocalTimeUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:ReciprocalTimeUomEnumType">
  <annotation>
    <documentation>The unit of measure for reciprocal time or frequency.</documentation>
  </annotation>
</attribute>
