Complex Type diggs:RadianceMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Radiance or luminous intensity per area: Radiant power per unit solid angle per unit projected area. Used in remote sensing and radiation measurements. Common units include W/(m²·sr).

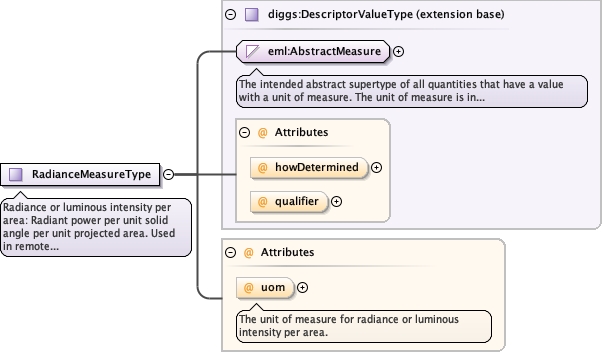

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_RadianceMeasureType.tmp#RadianceMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:RadianceUomEnumType optional
The unit of measure for radiance or luminous intensity per area.
Source

<complexType name="RadianceMeasureType">
  <annotation>
    <documentation>Radiance or luminous intensity per area: Radiant power per unit solid angle per unit projected area. Used in remote sensing and radiation measurements. Common units include W/(m²·sr).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:RadianceUomEnumType">
        <annotation>
          <documentation>The unit of measure for radiance or luminous intensity per area.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:RadianceMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for radiance or luminous intensity per area.
Type diggs:RadianceUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:RadianceUomEnumType">
  <annotation>
    <documentation>The unit of measure for radiance or luminous intensity per area.</documentation>
  </annotation>
</attribute>
