Complex Type diggs:PressureTimePerVolumeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Pressure-time per volume or hydraulic impedance: Product of pressure and time per unit volume. Used in hydraulic fracturing and flow resistance calculations. Common units include Pa·s/m³ and psi·d/bbl.

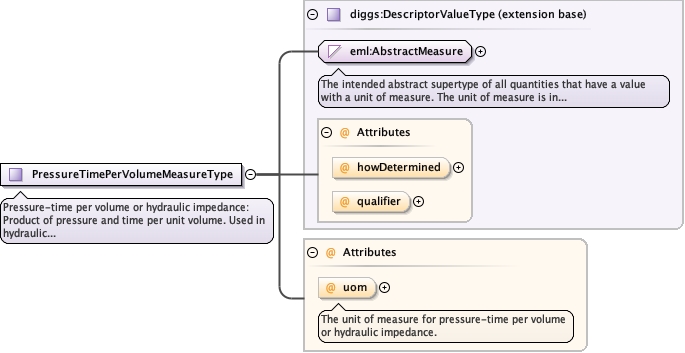

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureTimePerVolumeMeasureType.tmp#PressureTimePerVolumeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureTimePerVolumeUomEnumType optional
The unit of measure for pressure-time per volume or hydraulic impedance.
Source

<complexType name="PressureTimePerVolumeMeasureType">
  <annotation>
    <documentation>Pressure-time per volume or hydraulic impedance: Product of pressure and time per unit volume. Used in hydraulic fracturing and flow resistance calculations. Common units include Pa·s/m³ and psi·d/bbl.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:PressureTimePerVolumeUomEnumType">
        <annotation>
          <documentation>The unit of measure for pressure-time per volume or hydraulic impedance.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:PressureTimePerVolumeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for pressure-time per volume or hydraulic impedance.
Type diggs:PressureTimePerVolumeUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:PressureTimePerVolumeUomEnumType">
  <annotation>
    <documentation>The unit of measure for pressure-time per volume or hydraulic impedance.</documentation>
  </annotation>
</attribute>
