Complex Type diggs:PowerPerVolumeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Power density per volume or volumetric heat generation: Power per unit volume. Used for heat generation rates and power density in three dimensions. Common units include W/m³, kW/m³, Btu/(h·ft³), and hp/ft³.

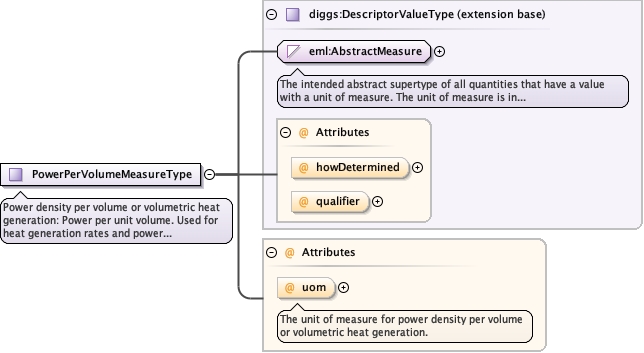

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PowerPerVolumeMeasureType.tmp#PowerPerVolumeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PowerPerVolumeUomEnumType optional
The unit of measure for power density per volume or volumetric heat generation.
Source

<complexType name="PowerPerVolumeMeasureType">
  <annotation>
    <documentation>Power density per volume or volumetric heat generation: Power per unit volume. Used for heat generation rates and power density in three dimensions. Common units include W/m³, kW/m³, Btu/(h·ft³), and hp/ft³.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:PowerPerVolumeUomEnumType">
        <annotation>
          <documentation>The unit of measure for power density per volume or volumetric heat generation.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:PowerPerVolumeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for power density per volume or volumetric heat generation.
Type diggs:PowerPerVolumeUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:PowerPerVolumeUomEnumType">
  <annotation>
    <documentation>The unit of measure for power density per volume or volumetric heat generation.</documentation>
  </annotation>
</attribute>
