Complex Type diggs:PermittivityMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Electrical permittivity: Measure of material's ability to store electrical energy in an electric field. Used in electromagnetic field calculations and dielectric property measurements. Common units include F/m (farad per metre) and µF/m.

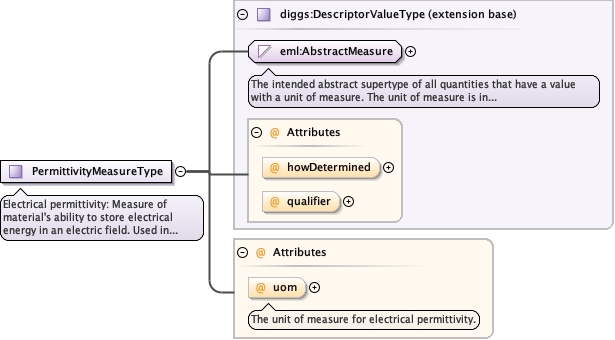

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PermittivityMeasureType.tmp#PermittivityMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PermittivityUomEnumType optional
The unit of measure for electrical permittivity.
Source

<complexType name="PermittivityMeasureType">
  <annotation>
    <documentation>Electrical permittivity: Measure of material's ability to store electrical energy in an electric field. Used in electromagnetic field calculations and dielectric property measurements. Common units include F/m (farad per metre) and µF/m.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:PermittivityUomEnumType">
        <annotation>
          <documentation>The unit of measure for electrical permittivity.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:PermittivityMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for electrical permittivity.
Type diggs:PermittivityUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:PermittivityUomEnumType">
  <annotation>
    <documentation>The unit of measure for electrical permittivity.</documentation>
  </annotation>
</attribute>
