Complex Type diggs:MassPerVolumePerTemperatureMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Density change per unit temperature or thermal expansion coefficient: Rate of density change with temperature. Used in thermal fluid mechanics and materials science. Common units include kg/(m³·K) and kg/(m³·°C).

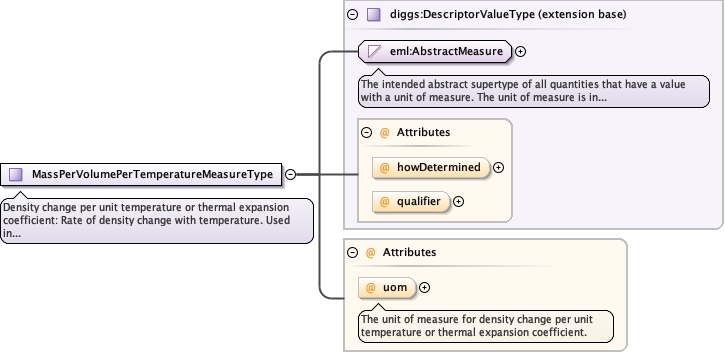

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassPerVolumePerTemperatureMeasureType.tmp#MassPerVolumePerTemperatureMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassPerVolumePerTemperatureUomEnumType optional
The unit of measure for density change per unit temperature or thermal expansion coefficient.
Source

<complexType name="MassPerVolumePerTemperatureMeasureType">
  <annotation>
    <documentation>Density change per unit temperature or thermal expansion coefficient: Rate of density change with temperature. Used in thermal fluid mechanics and materials science. Common units include kg/(m³·K) and kg/(m³·°C).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:MassPerVolumePerTemperatureUomEnumType">
        <annotation>
          <documentation>The unit of measure for density change per unit temperature or thermal expansion coefficient.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:MassPerVolumePerTemperatureMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for density change per unit temperature or thermal expansion coefficient.
Type diggs:MassPerVolumePerTemperatureUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:MassPerVolumePerTemperatureUomEnumType">
  <annotation>
    <documentation>The unit of measure for density change per unit temperature or thermal expansion coefficient.</documentation>
  </annotation>
</attribute>
