Complex Type diggs:MassPerVolumeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Mass density: Mass per unit volume. Fundamental material property used universally in engineering and science. Common units include kg/m³, g/cm³, Mg/m³, lbm/ft³, lbm/gal[US], and slug/ft³.

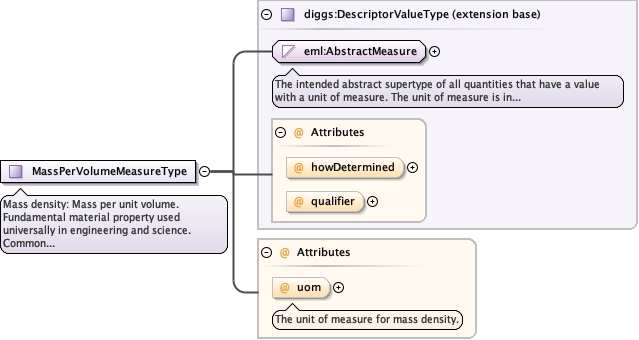

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassPerVolumeMeasureType.tmp#MassPerVolumeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassPerVolumeUomEnumType optional
The unit of measure for mass density.
Source

<complexType name="MassPerVolumeMeasureType">
  <annotation>
    <documentation>Mass density: Mass per unit volume. Fundamental material property used universally in engineering and science. Common units include kg/m³, g/cm³, Mg/m³, lbm/ft³, lbm/gal[US], and slug/ft³.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:MassPerVolumeUomEnumType">
        <annotation>
          <documentation>The unit of measure for mass density.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:MassPerVolumeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for mass density.
Type diggs:MassPerVolumeUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:MassPerVolumeUomEnumType">
  <annotation>
    <documentation>The unit of measure for mass density.</documentation>
  </annotation>
</attribute>
