Complex Type diggs:MassPerTimePerLengthMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Dynamic viscosity or mass flux per length: Viscosity or mass flow rate per unit length per unit time. Equivalent to dynamic viscosity. Common units include Pa·s, kg/(m·s), and lbm/(ft·s).

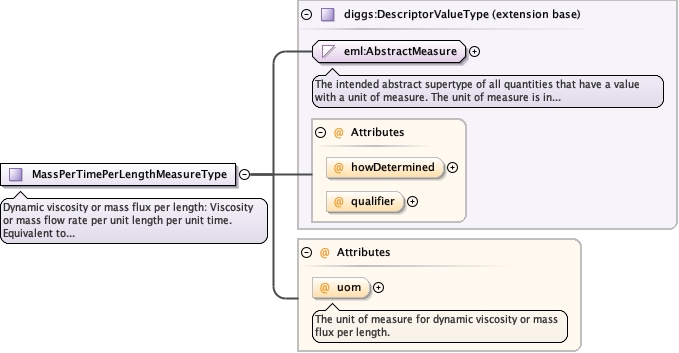

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassPerTimePerLengthMeasureType.tmp#MassPerTimePerLengthMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassPerTimePerLengthUomEnumType optional
The unit of measure for dynamic viscosity or mass flux per length.
Source

<complexType name="MassPerTimePerLengthMeasureType">
  <annotation>
    <documentation>Dynamic viscosity or mass flux per length: Viscosity or mass flow rate per unit length per unit time. Equivalent to dynamic viscosity. Common units include Pa·s, kg/(m·s), and lbm/(ft·s).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:MassPerTimePerLengthUomEnumType">
        <annotation>
          <documentation>The unit of measure for dynamic viscosity or mass flux per length.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:MassPerTimePerLengthMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for dynamic viscosity or mass flux per length.
Type diggs:MassPerTimePerLengthUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:MassPerTimePerLengthUomEnumType">
  <annotation>
    <documentation>The unit of measure for dynamic viscosity or mass flux per length.</documentation>
  </annotation>
</attribute>
