Complex Type diggs:MassPerAreaMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Mass per unit area or surface density: Mass distributed over an area. Used for loadings, coatings, fabric weights, and soil properties. Common units include kg/m², Mg/m² (megagram per square metre, equivalent to tonne per square metre), lbm/ft², and ton[US]/ft².

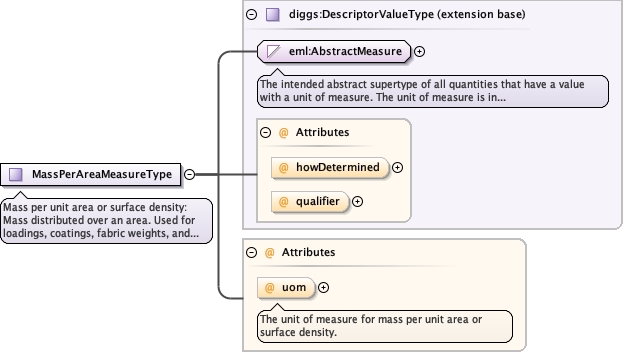

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassPerAreaMeasureType.tmp#MassPerAreaMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassPerAreaUomEnumType optional
The unit of measure for mass per unit area or surface density.
Source

<complexType name="MassPerAreaMeasureType">
  <annotation>
    <documentation>Mass per unit area or surface density: Mass distributed over an area. Used for loadings, coatings, fabric weights, and soil properties. Common units include kg/m², Mg/m² (megagram per square metre, equivalent to tonne per square metre), lbm/ft², and ton[US]/ft².</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:MassPerAreaUomEnumType">
        <annotation>
          <documentation>The unit of measure for mass per unit area or surface density.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:MassPerAreaMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for mass per unit area or surface density.
Type diggs:MassPerAreaUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:MassPerAreaUomEnumType">
  <annotation>
    <documentation>The unit of measure for mass per unit area or surface density.</documentation>
  </annotation>
</attribute>
