Complex Type diggs:MagneticPermeabilityMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Magnetic permeability: Measure of material's ability to support magnetic field formation. Material property used in electromagnetic field calculations. Common units include H/m (henry per metre) and µH/m.

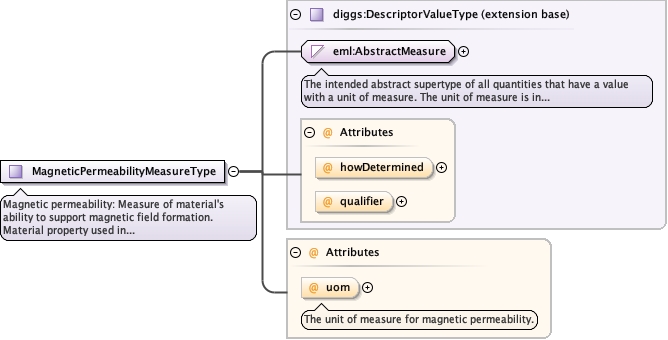

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MagneticPermeabilityMeasureType.tmp#MagneticPermeabilityMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MagneticPermeabilityUomEnumType optional
The unit of measure for magnetic permeability.
Source

<complexType name="MagneticPermeabilityMeasureType">
  <annotation>
    <documentation>Magnetic permeability: Measure of material's ability to support magnetic field formation. Material property used in electromagnetic field calculations. Common units include H/m (henry per metre) and µH/m.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:MagneticPermeabilityUomEnumType">
        <annotation>
          <documentation>The unit of measure for magnetic permeability.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:MagneticPermeabilityMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for magnetic permeability.
Type diggs:MagneticPermeabilityUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:MagneticPermeabilityUomEnumType">
  <annotation>
    <documentation>The unit of measure for magnetic permeability.</documentation>
  </annotation>
</attribute>
