Complex Type diggs:HeatTransferCoefficientMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Heat transfer coefficient or thermal conductance per area: Rate of heat transfer per unit area per unit temperature difference. Used in heat exchanger design, building thermal analysis, and convective heat transfer. Common units include W/(m²·K), Btu/(h·ft²·°F), and kW/(m²·K).

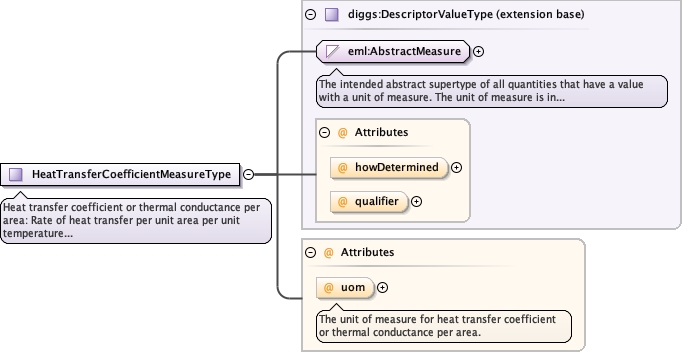

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_HeatTransferCoefficientMeasureType.tmp#HeatTransferCoefficientMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:HeatTransferCoefficientUomEnumType optional
The unit of measure for heat transfer coefficient or thermal conductance per area.
Source

<complexType name="HeatTransferCoefficientMeasureType">
  <annotation>
    <documentation>Heat transfer coefficient or thermal conductance per area: Rate of heat transfer per unit area per unit temperature difference. Used in heat exchanger design, building thermal analysis, and convective heat transfer. Common units include W/(m²·K), Btu/(h·ft²·°F), and kW/(m²·K).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:HeatTransferCoefficientUomEnumType">
        <annotation>
          <documentation>The unit of measure for heat transfer coefficient or thermal conductance per area.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:HeatTransferCoefficientMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for heat transfer coefficient or thermal conductance per area.
Type diggs:HeatTransferCoefficientUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:HeatTransferCoefficientUomEnumType">
  <annotation>
    <documentation>The unit of measure for heat transfer coefficient or thermal conductance per area.</documentation>
  </annotation>
</attribute>
