Complex Type diggs:HeatCapacityMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Heat capacity or thermal capacity: Amount of heat required to change temperature by one degree. Used in thermal analysis and calorimetry. Common units include J/K (joule per kelvin).

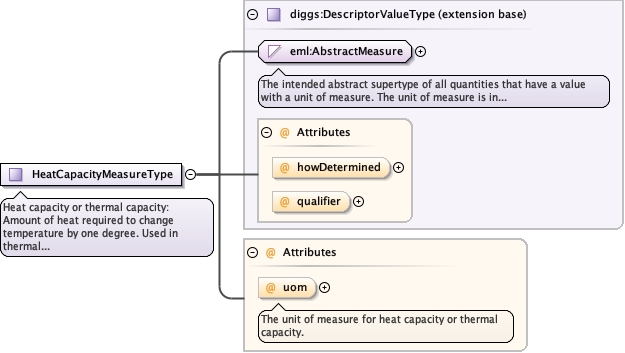

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_HeatCapacityMeasureType.tmp#HeatCapacityMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:HeatCapacityUomEnumType optional
The unit of measure for heat capacity or thermal capacity.
Source

<complexType name="HeatCapacityMeasureType">
  <annotation>
    <documentation>Heat capacity or thermal capacity: Amount of heat required to change temperature by one degree. Used in thermal analysis and calorimetry. Common units include J/K (joule per kelvin).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:HeatCapacityUomEnumType">
        <annotation>
          <documentation>The unit of measure for heat capacity or thermal capacity.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:HeatCapacityMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for heat capacity or thermal capacity.
Type diggs:HeatCapacityUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:HeatCapacityUomEnumType">
  <annotation>
    <documentation>The unit of measure for heat capacity or thermal capacity.</documentation>
  </annotation>
</attribute>
