Complex Type diggs:ElectricalResistivityMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Electrical resistivity: Material property representing resistance to current flow. Reciprocal of conductivity. Extensively used in geophysical resistivity surveys for site characterization. Common units include Ω·m (ohm-metre) and kΩ·m.

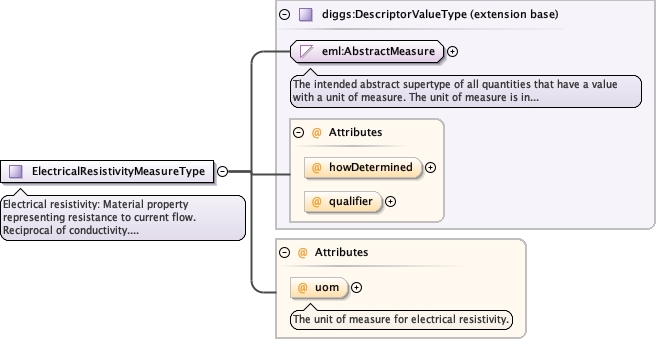

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ElectricalResistivityMeasureType.tmp#ElectricalResistivityMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ElectricalResistivityUomEnumType optional
The unit of measure for electrical resistivity.
Source

<complexType name="ElectricalResistivityMeasureType">
  <annotation>
    <documentation>Electrical resistivity: Material property representing resistance to current flow. Reciprocal of conductivity. Extensively used in geophysical resistivity surveys for site characterization. Common units include Ω·m (ohm-metre) and kΩ·m.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:ElectricalResistivityUomEnumType">
        <annotation>
          <documentation>The unit of measure for electrical resistivity.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:ElectricalResistivityMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for electrical resistivity.
Type diggs:ElectricalResistivityUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:ElectricalResistivityUomEnumType">
  <annotation>
    <documentation>The unit of measure for electrical resistivity.</documentation>
  </annotation>
</attribute>
