Complex Type diggs:ElectricPotentialDifferenceMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Voltage or electric potential difference: Work required to move unit charge between two points. Fundamental electrical quantity. Common units include volt (V), millivolt (mV), microvolt (µV), and kilovolt (kV).

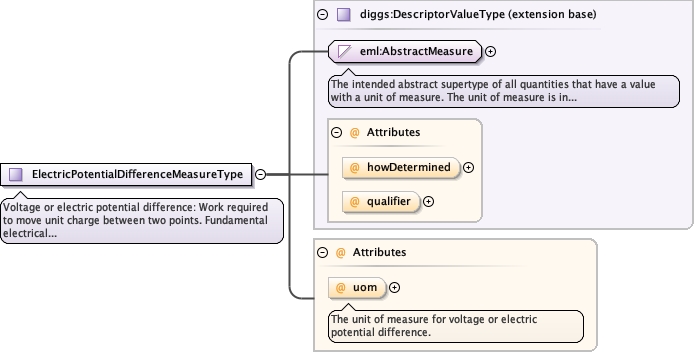

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ElectricPotentialDifferenceMeasureType.tmp#ElectricPotentialDifferenceMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ElectricPotentialDifferenceUomEnumType optional
The unit of measure for voltage or electric potential difference.
Source

<complexType name="ElectricPotentialDifferenceMeasureType">
  <annotation>
    <documentation>Voltage or electric potential difference: Work required to move unit charge between two points. Fundamental electrical quantity. Common units include volt (V), millivolt (mV), microvolt (µV), and kilovolt (kV).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:ElectricPotentialDifferenceUomEnumType">
        <annotation>
          <documentation>The unit of measure for voltage or electric potential difference.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:ElectricPotentialDifferenceMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for voltage or electric potential difference.
Type diggs:ElectricPotentialDifferenceUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:ElectricPotentialDifferenceUomEnumType">
  <annotation>
    <documentation>The unit of measure for voltage or electric potential difference.</documentation>
  </annotation>
</attribute>
