Complex Type diggs:AttenuationPerFrequencyIntervalMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Attenuation rate: Signal attenuation per frequency interval. Used in acoustics, seismology, and geophysical signal processing. Common units include dB/octave and bel/octave.

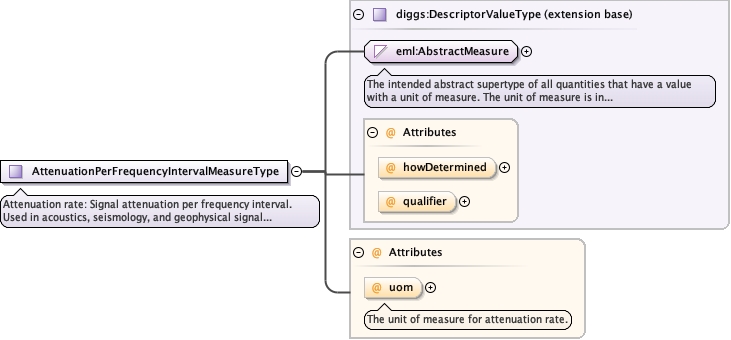

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AttenuationPerFrequencyIntervalMeasureType.tmp#AttenuationPerFrequencyIntervalMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AttenuationPerFrequencyIntervalUomEnumType optional
The unit of measure for attenuation rate.
Source

<complexType name="AttenuationPerFrequencyIntervalMeasureType">
  <annotation>
    <documentation>Attenuation rate: Signal attenuation per frequency interval. Used in acoustics, seismology, and geophysical signal processing. Common units include dB/octave and bel/octave.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:AttenuationPerFrequencyIntervalUomEnumType">
        <annotation>
          <documentation>The unit of measure for attenuation rate.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:AttenuationPerFrequencyIntervalMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for attenuation rate.
Type diggs:AttenuationPerFrequencyIntervalUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:AttenuationPerFrequencyIntervalUomEnumType">
  <annotation>
    <documentation>The unit of measure for attenuation rate.</documentation>
  </annotation>
</attribute>
