Complex Type diggs:AreaPerCountMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Cross-sectional area per particle: Area per discrete entity or count. Used in nuclear physics (cross-sections), particle analysis, and microscopy. Common units include barn/electron (where 1 barn = 10⁻²⁸ m²).

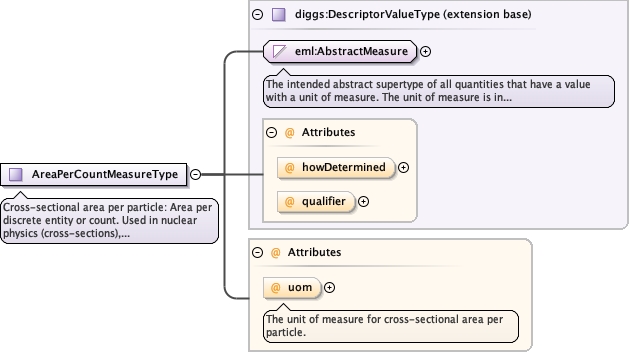

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaPerCountMeasureType.tmp#AreaPerCountMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaPerCountUomEnumType optional
The unit of measure for cross-sectional area per particle.
Source

<complexType name="AreaPerCountMeasureType">
  <annotation>
    <documentation>Cross-sectional area per particle: Area per discrete entity or count. Used in nuclear physics (cross-sections), particle analysis, and microscopy. Common units include barn/electron (where 1 barn = 10⁻²⁸ m²).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:AreaPerCountUomEnumType">
        <annotation>
          <documentation>The unit of measure for cross-sectional area per particle.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:AreaPerCountMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for cross-sectional area per particle.
Type diggs:AreaPerCountUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:AreaPerCountUomEnumType">
  <annotation>
    <documentation>The unit of measure for cross-sectional area per particle.</documentation>
  </annotation>
</attribute>
