Namespace http://diggsml.org/schemas/3
Annotations
An object that carries properties for a grout stage

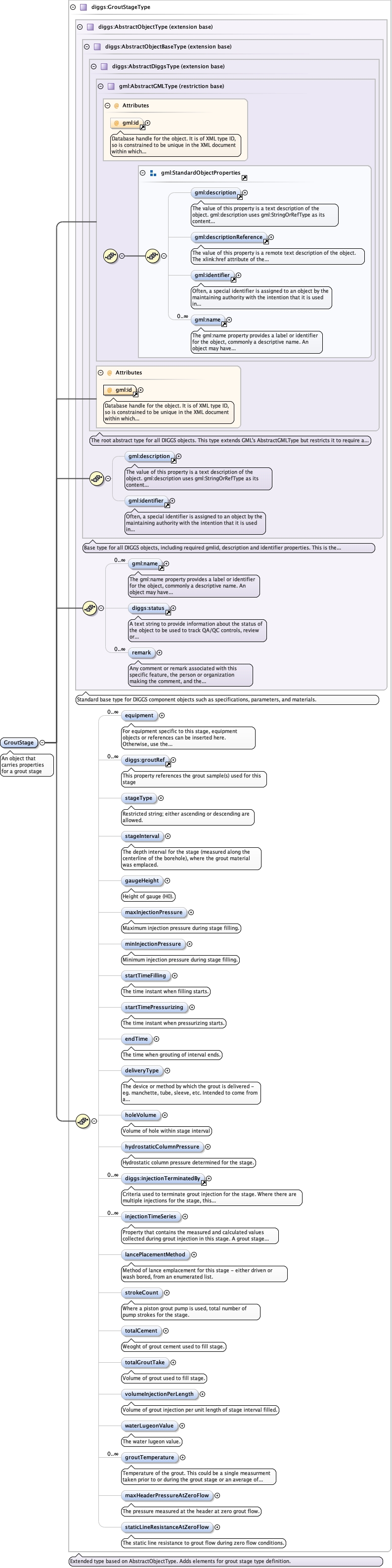

Diagram
Type diggs:GroutStageType
Type hierarchy
Properties
Used by
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:status{0,1} ,
diggs:remark* ,
diggs:equipment* ,
diggs:groutRef* ,
diggs:stageType{0,1} ,
diggs:stageInterval{0,1} ,
diggs:gaugeHeight{0,1} ,
diggs:maxInjectionPressure{0,1} ,
diggs:minInjectionPressure{0,1} ,
diggs:startTimeFilling{0,1} ,
diggs:startTimePressurizing{0,1} ,
diggs:endTime{0,1} ,
diggs:deliveryType{0,1} ,
diggs:holeVolume{0,1} ,
diggs:hydrostaticColumnPressure{0,1} ,
diggs:injectionTerminatedBy* ,
diggs:injectionTimeSeries* ,
diggs:lancePlacementMethod{0,1} ,
diggs:strokeCount{0,1} ,
diggs:totalCement{0,1} ,
diggs:totalGroutTake{0,1} ,
diggs:volumeInjectionPerLength{0,1} ,
diggs:waterLugeonValue{0,1} ,
diggs:groutTemperature* ,
diggs:maxHeaderPressureAtZeroFlow{0,1} ,
diggs:staticLineResistanceAtZeroFlow{0,1}
Children diggs:deliveryType diggs:endTime diggs:equipment diggs:gaugeHeight diggs:groutRef diggs:groutTemperature diggs:holeVolume diggs:hydrostaticColumnPressure diggs:injectionTerminatedBy diggs:injectionTimeSeries diggs:lancePlacementMethod diggs:maxHeaderPressureAtZeroFlow diggs:maxInjectionPressure diggs:minInjectionPressure diggs:remark diggs:stageInterval diggs:stageType diggs:startTimeFilling diggs:startTimePressurizing diggs:staticLineResistanceAtZeroFlow diggs:status diggs:strokeCount diggs:totalCement diggs:totalGroutTake diggs:volumeInjectionPerLength diggs:waterLugeonValue gml:description gml:identifier gml:name
Instance
<diggs:GroutStage gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:equipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:equipment>
<diggs:groutRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:groutRef>
<diggs:stageType > {0,1} </diggs:stageType>
<diggs:stageInterval xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {0,1} </diggs:stageInterval>
<diggs:gaugeHeight howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:gaugeHeight>
<diggs:maxInjectionPressure howDetermined= "" qualifier= "" sensorLocation= "" type= "" uom= "" > {0,1} </diggs:maxInjectionPressure>
<diggs:minInjectionPressure howDetermined= "" qualifier= "" sensorLocation= "" type= "" uom= "" > {0,1} </diggs:minInjectionPressure>
<diggs:startTimeFilling xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:startTimeFilling>
<diggs:startTimePressurizing xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:startTimePressurizing>
<diggs:endTime xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:endTime>
<diggs:deliveryType codeSpace= "" > {0,1} </diggs:deliveryType>
<diggs:holeVolume howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:holeVolume>
<diggs:hydrostaticColumnPressure howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:hydrostaticColumnPressure>
<diggs:injectionTerminatedBy displacedFeature= "" > {0,unbounded} </diggs:injectionTerminatedBy>
<diggs:injectionTimeSeries > {0,unbounded} </diggs:injectionTimeSeries>
<diggs:lancePlacementMethod > {0,1} </diggs:lancePlacementMethod>
<diggs:strokeCount > {0,1} </diggs:strokeCount>
<diggs:totalCement howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalCement>
<diggs:totalGroutTake howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalGroutTake>
<diggs:volumeInjectionPerLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:volumeInjectionPerLength>
<diggs:waterLugeonValue howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waterLugeonValue>
<diggs:groutTemperature > {0,unbounded} </diggs:groutTemperature>
<diggs:maxHeaderPressureAtZeroFlow howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:maxHeaderPressureAtZeroFlow>
<diggs:staticLineResistanceAtZeroFlow howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:staticLineResistanceAtZeroFlow>
</diggs:GroutStage>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "GroutStage" type= "diggs:GroutStageType" >
<annotation >
<documentation > An object that carries properties for a grout stage </documentation>
</annotation>
</element>
