Element diggs:GroutSpecimenConditions
Namespace http://diggsml.org/schemas/3
Annotations

An object that describes the physical conditions of a specimen subjected
to testing

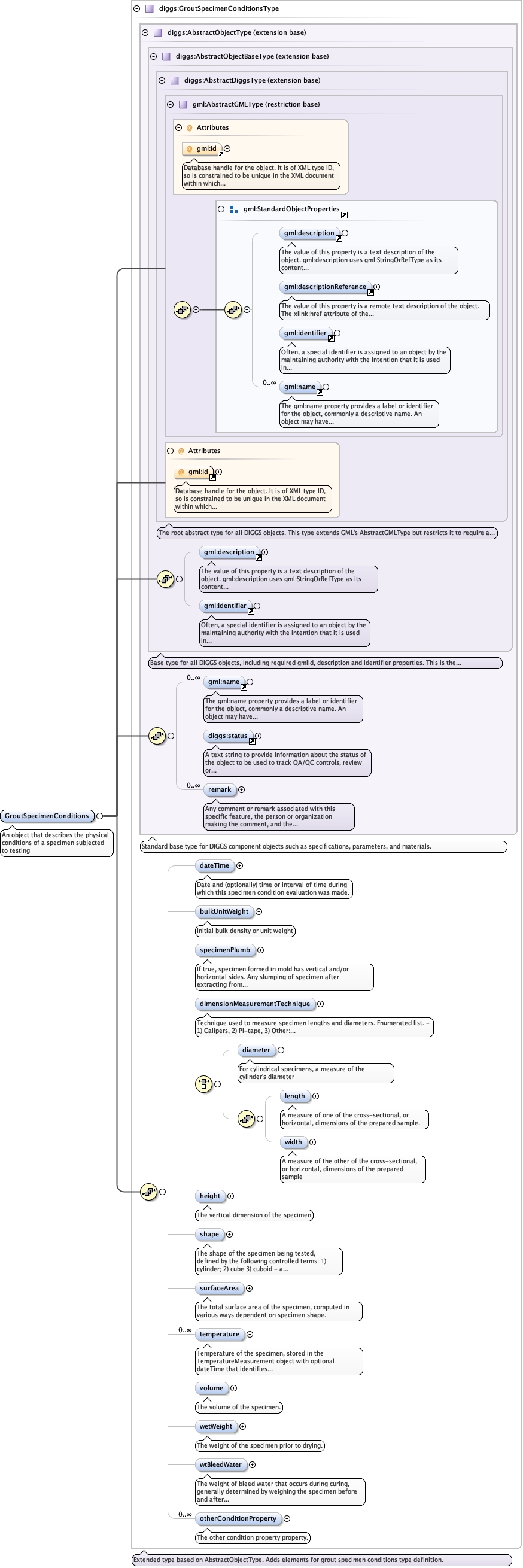

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_dateTimeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_bulkUnitWeightGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_specimenPlumbGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_dimensionMeasurementTechniqueGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_diameterGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_lengthGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_widthGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_heightGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_shapeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_surfaceAreaGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_temperatureGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_volumeGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_wetWeightGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_wtBleedWaterGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType_otherConditionPropertyGrouting_xsd_Complex_Type_diggs_GroutSpecimenConditionsType.tmp#GroutSpecimenConditionsType
Type diggs:GroutSpecimenConditionsType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:bulkUnitWeight, diggs:dateTime, diggs:diameter, diggs:dimensionMeasurementTechnique, diggs:height, diggs:length, diggs:otherConditionProperty, diggs:remark, diggs:shape, diggs:specimenPlumb, diggs:status, diggs:surfaceArea, diggs:temperature, diggs:volume, diggs:wetWeight, diggs:width, diggs:wtBleedWater, gml:description, gml:identifier, gml:name
Instance

<diggs:GroutSpecimenConditions gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:dateTime>{0,1}</diggs:dateTime>
  <diggs:bulkUnitWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:bulkUnitWeight>
  <diggs:specimenPlumb>{0,1}</diggs:specimenPlumb>
  <diggs:dimensionMeasurementTechnique>{0,1}</diggs:dimensionMeasurementTechnique>
  <diggs:diameter howDetermined="" qualifier="" uom="">{0,1}</diggs:diameter>
  <diggs:length howDetermined="" qualifier="" uom="">{0,1}</diggs:length>
  <diggs:width howDetermined="" qualifier="" uom="">{0,1}</diggs:width>
  <diggs:height howDetermined="" qualifier="" uom="">{0,1}</diggs:height>
  <diggs:shape>{0,1}</diggs:shape>
  <diggs:surfaceArea howDetermined="" qualifier="" uom="">{0,1}</diggs:surfaceArea>
  <diggs:temperature>{0,unbounded}</diggs:temperature>
  <diggs:volume howDetermined="" qualifier="" uom="">{0,1}</diggs:volume>
  <diggs:wetWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:wetWeight>
  <diggs:wtBleedWater howDetermined="" qualifier="" uom="">{0,1}</diggs:wtBleedWater>
  <diggs:otherConditionProperty>{0,unbounded}</diggs:otherConditionProperty>
</diggs:GroutSpecimenConditions>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="GroutSpecimenConditions" type="diggs:GroutSpecimenConditionsType">
  <annotation>
    <documentation>An object that describes the physical conditions of a specimen subjected to testing</documentation>
  </annotation>
</element>
