Namespace http://diggsml.org/schemas/3
Annotations
An object that carries properties for continuous grouting performed
during jet grouting or deep soil mixing activities

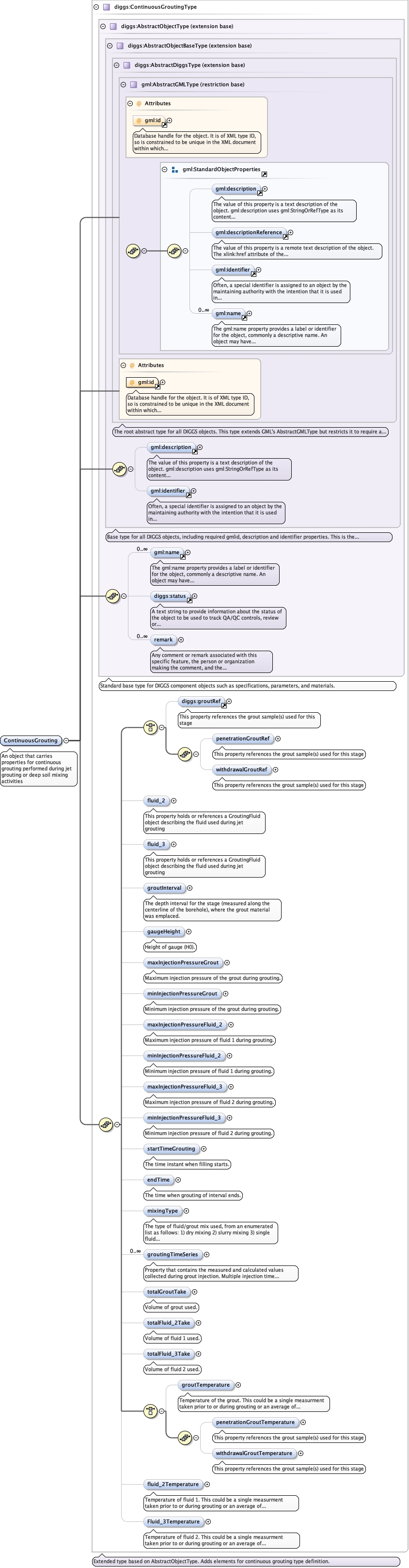

Diagram
Type diggs:ContinuousGroutingType
Type hierarchy
Properties
Used by
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:status{0,1} ,
diggs:remark* , (
diggs:groutRef{0,1} | (
diggs:penetrationGroutRef{0,1} ,
diggs:withdrawalGroutRef{0,1} )) ,
diggs:fluid_2{0,1} ,
diggs:fluid_3{0,1} ,
diggs:groutInterval{0,1} ,
diggs:gaugeHeight{0,1} ,
diggs:maxInjectionPressureGrout{0,1} ,
diggs:minInjectionPressureGrout{0,1} ,
diggs:maxInjectionPressureFluid_2{0,1} ,
diggs:minInjectionPressureFluid_2{0,1} ,
diggs:maxInjectionPressureFluid_3{0,1} ,
diggs:minInjectionPressureFluid_3{0,1} ,
diggs:startTimeGrouting{0,1} ,
diggs:endTime{0,1} ,
diggs:mixingType{0,1} ,
diggs:groutingTimeSeries* ,
diggs:totalGroutTake{0,1} ,
diggs:totalFluid_2Take{0,1} ,
diggs:totalFluid_3Take{0,1} , (
diggs:groutTemperature{0,1} | (
diggs:penetrationGroutTemperature{0,1} ,
diggs:withdrawalGroutTemperature{0,1} )) ,
diggs:fluid_2Temperature{0,1} ,
diggs:Fluid_3Temperature{0,1}
Children diggs:Fluid_3Temperature diggs:endTime diggs:fluid_2 diggs:fluid_2Temperature diggs:fluid_3 diggs:gaugeHeight diggs:groutInterval diggs:groutRef diggs:groutTemperature diggs:groutingTimeSeries diggs:maxInjectionPressureFluid_2 diggs:maxInjectionPressureFluid_3 diggs:maxInjectionPressureGrout diggs:minInjectionPressureFluid_2 diggs:minInjectionPressureFluid_3 diggs:minInjectionPressureGrout diggs:mixingType diggs:penetrationGroutRef diggs:penetrationGroutTemperature diggs:remark diggs:startTimeGrouting diggs:status diggs:totalFluid_2Take diggs:totalFluid_3Take diggs:totalGroutTake diggs:withdrawalGroutRef diggs:withdrawalGroutTemperature gml:description gml:identifier gml:name
Instance
<diggs:ContinuousGrouting gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:groutRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:groutRef>
<diggs:penetrationGroutRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:penetrationGroutRef>
<diggs:withdrawalGroutRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:withdrawalGroutRef>
<diggs:fluid_2 xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:fluid_2>
<diggs:fluid_3 xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:fluid_3>
<diggs:groutInterval xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {0,1} </diggs:groutInterval>
<diggs:gaugeHeight howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:gaugeHeight>
<diggs:maxInjectionPressureGrout howDetermined= "" qualifier= "" sensorLocation= "" type= "" uom= "" > {0,1} </diggs:maxInjectionPressureGrout>
<diggs:minInjectionPressureGrout howDetermined= "" qualifier= "" sensorLocation= "" type= "" uom= "" > {0,1} </diggs:minInjectionPressureGrout>
<diggs:maxInjectionPressureFluid_2 howDetermined= "" qualifier= "" sensorLocation= "" type= "" uom= "" > {0,1} </diggs:maxInjectionPressureFluid_2>
<diggs:minInjectionPressureFluid_2 howDetermined= "" qualifier= "" sensorLocation= "" type= "" uom= "" > {0,1} </diggs:minInjectionPressureFluid_2>
<diggs:maxInjectionPressureFluid_3 howDetermined= "" qualifier= "" sensorLocation= "" type= "" uom= "" > {0,1} </diggs:maxInjectionPressureFluid_3>
<diggs:minInjectionPressureFluid_3 howDetermined= "" qualifier= "" sensorLocation= "" type= "" uom= "" > {0,1} </diggs:minInjectionPressureFluid_3>
<diggs:startTimeGrouting xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:startTimeGrouting>
<diggs:endTime xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:endTime>
<diggs:mixingType > {0,1} </diggs:mixingType>
<diggs:groutingTimeSeries > {0,unbounded} </diggs:groutingTimeSeries>
<diggs:totalGroutTake howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalGroutTake>
<diggs:totalFluid_2Take howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalFluid_2Take>
<diggs:totalFluid_3Take howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalFluid_3Take>
<diggs:groutTemperature howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:groutTemperature>
<diggs:penetrationGroutTemperature howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:penetrationGroutTemperature>
<diggs:withdrawalGroutTemperature howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:withdrawalGroutTemperature>
<diggs:fluid_2Temperature howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:fluid_2Temperature>
<diggs:Fluid_3Temperature howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:Fluid_3Temperature>
</diggs:ContinuousGrouting>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "ContinuousGrouting" type= "diggs:ContinuousGroutingType" >
<annotation >
<documentation > An object that carries properties for continuous grouting performed during jet grouting or deep soil mixing activities </documentation>
</annotation>
</element>
