Element diggs:GroutingTimeSeriesType / diggs:initiationTime
Namespace http://diggsml.org/schemas/3
Annotations

Time instant that injection begins.

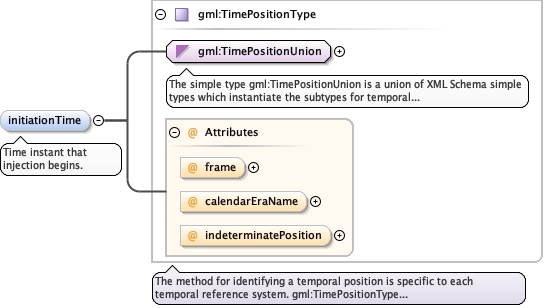

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="initiationTime" type="gml:TimePositionType">
  <annotation>
    <documentation>Time instant that injection begins.</documentation>
  </annotation>
</element>
Element diggs:GroutingTimeSeriesType / diggs:endTime
Namespace http://diggsml.org/schemas/3
Annotations

Time instant that injection ends.

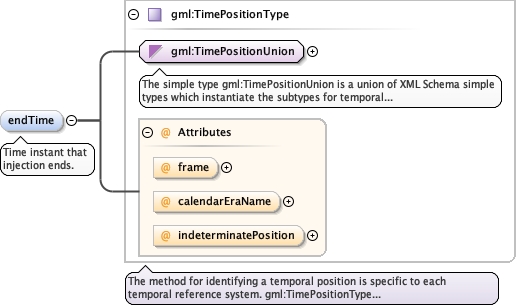

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="endTime" type="gml:TimePositionType">
  <annotation>
    <documentation>Time instant that injection ends.</documentation>
  </annotation>
</element>
Element diggs:GroutingTimeSeriesType / diggs:totalElapsedTime
Namespace http://diggsml.org/schemas/3
Annotations

Total time between injection initiation and injection
termination.

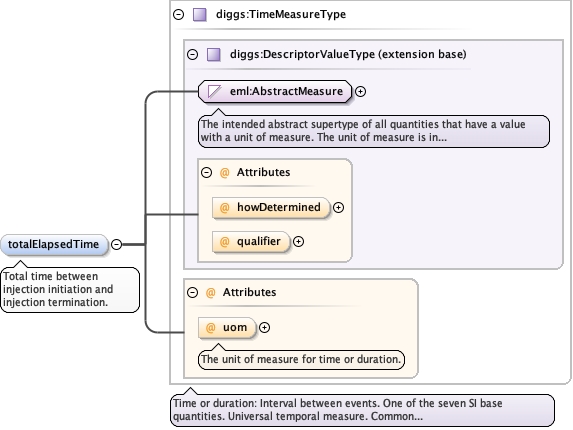

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType
Type diggs:TimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimeUomEnumType optional
The unit of measure for time or duration.
Source

<element minOccurs="0" name="totalElapsedTime" type="diggs:TimeMeasureType">
  <annotation>
    <documentation>Total time between injection initiation and injection termination.</documentation>
  </annotation>
</element>
Element diggs:GroutingTimeSeriesType / diggs:totalGroutTake
Namespace http://diggsml.org/schemas/3
Annotations

Total volume of grout injected during this injection
interval.

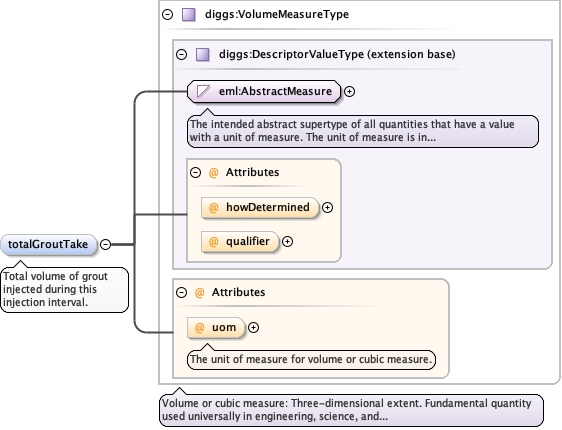

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="totalGroutTake" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>Total volume of grout injected during this injection interval.</documentation>
  </annotation>
</element>
Element diggs:GroutingTimeSeriesType / diggs:filteringParameters
Namespace http://diggsml.org/schemas/3
Annotations

A description of any parameters used for filtering any
raw data parameters before reporting those data in the outcome
property.

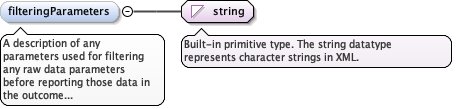

Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="filteringParameters" type="string">
  <annotation>
    <documentation>A description of any parameters used for filtering any raw data parameters before reporting those data in the outcome property.</documentation>
  </annotation>
</element>
Complex Type diggs:GroutingTimeSeriesType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on TemporalResultType. Adds elements for grouting time series type definition.

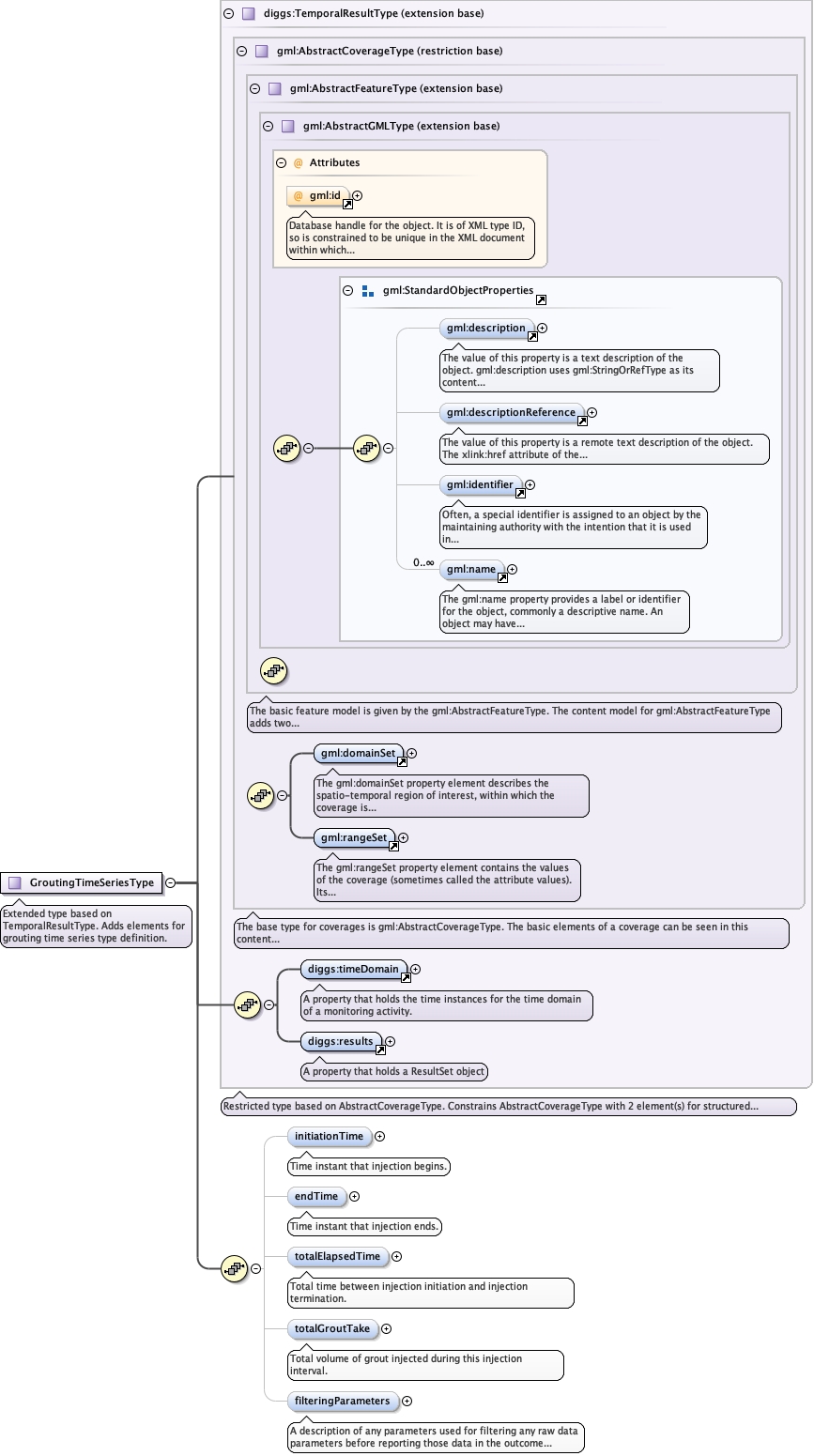

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_domainSet.tmp#domainSetgml3_2Profile_diggs_xsd_Element_gml_rangeSet.tmp#rangeSetgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCoverageType.tmp#AbstractCoverageTypeCommon_xsd_Element_diggs_timeDomain.tmp#timeDomainCommon_xsd_Element_diggs_results.tmp#resultsCore_xsd_Complex_Type_diggs_TemporalResultType.tmp#TemporalResultTypeGrouting_xsd_Complex_Type_diggs_GroutingTimeSeriesType.tmp#GroutingTimeSeriesType_initiationTimeGrouting_xsd_Complex_Type_diggs_GroutingTimeSeriesType.tmp#GroutingTimeSeriesType_endTimeGrouting_xsd_Complex_Type_diggs_GroutingTimeSeriesType.tmp#GroutingTimeSeriesType_totalElapsedTimeGrouting_xsd_Complex_Type_diggs_GroutingTimeSeriesType.tmp#GroutingTimeSeriesType_totalGroutTakeGrouting_xsd_Complex_Type_diggs_GroutingTimeSeriesType.tmp#GroutingTimeSeriesType_filteringParameters
Type extension of diggs:TemporalResultType
Type hierarchy
Used by
Model
Children diggs:endTime, diggs:filteringParameters, diggs:initiationTime, diggs:results, diggs:timeDomain, diggs:totalElapsedTime, diggs:totalGroutTake
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutingTimeSeriesType">
  <annotation>
    <documentation>Extended type based on TemporalResultType. Adds elements for grouting time series type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:TemporalResultType">
      <sequence>
        <element minOccurs="0" name="initiationTime" type="gml:TimePositionType">
          <annotation>
            <documentation>Time instant that injection begins.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="endTime" type="gml:TimePositionType">
          <annotation>
            <documentation>Time instant that injection ends.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalElapsedTime" type="diggs:TimeMeasureType">
          <annotation>
            <documentation>Total time between injection initiation and injection termination.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalGroutTake" type="diggs:VolumeMeasureType">
          <annotation>
            <documentation>Total volume of grout injected during this injection interval.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="filteringParameters" type="string">
          <annotation>
            <documentation>A description of any parameters used for filtering any raw data parameters before reporting those data in the outcome property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
