Element diggs:ShellType / diggs:uncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The uncertainty property.

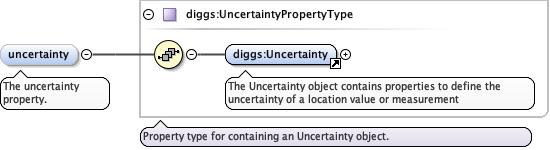

Diagram
DiagramCommon_xsd_Element_diggs_Uncertainty.tmp#UncertaintyCommon_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Uncertainty
Instance

<diggs:uncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Uncertainty gml:id="">{1,1}</diggs:Uncertainty>
</diggs:uncertainty>
Source

<element minOccurs="0" name="uncertainty" type="diggs:UncertaintyPropertyType">
  <annotation>
    <documentation>The uncertainty property.</documentation>
  </annotation>
</element>
Complex Type diggs:ShellType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractVolumeType. Adds elements for shell type definition.

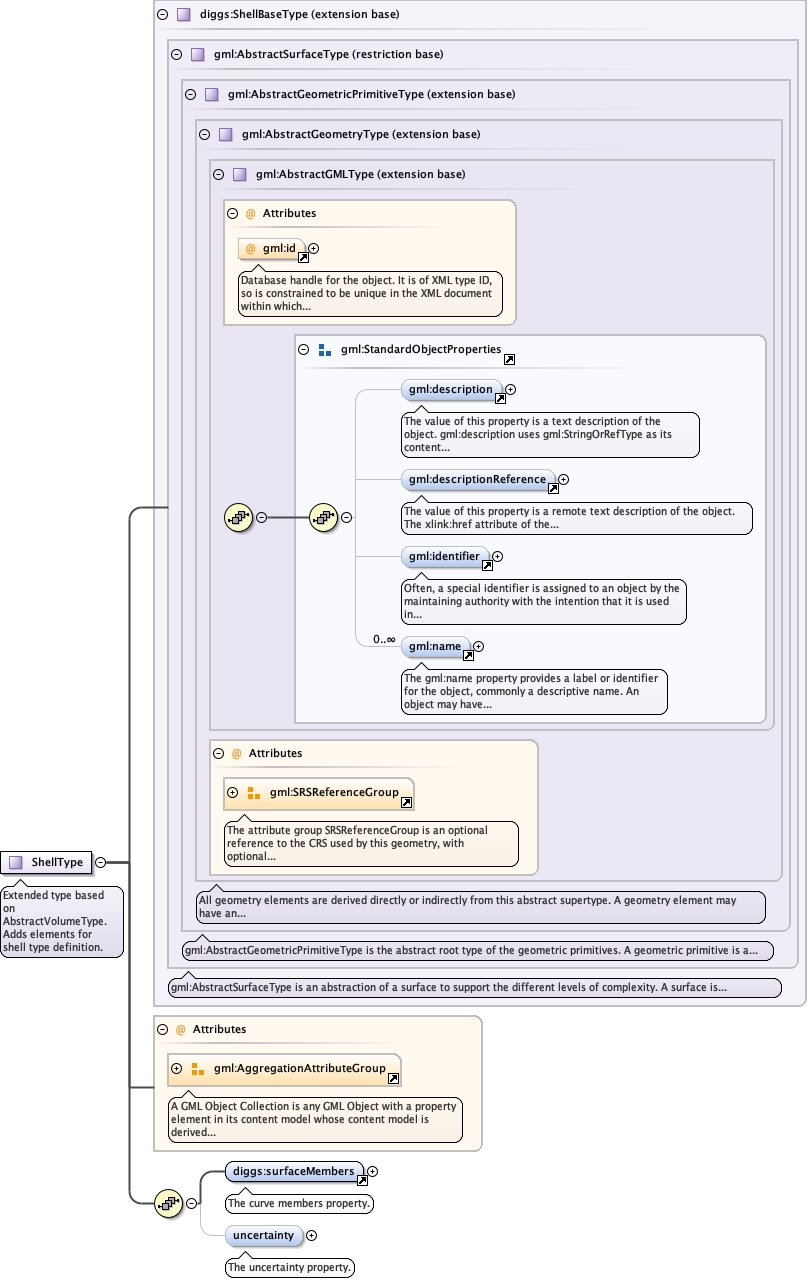

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSurfaceType.tmp#AbstractSurfaceTypeExtSamplingFeatures_xsd_Complex_Type_diggs_ShellBaseType.tmp#ShellBaseTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AggregationAttributeGroup.tmp#AggregationAttributeGroupExtSamplingFeatures_xsd_Element_diggs_surfaceMembers.tmp#http___diggsml.org_schemas_3_surfaceMembersExtSamplingFeatures_xsd_Complex_Type_diggs_ShellType.tmp#ShellType_uncertainty
Type extension of diggs:ShellBaseType
Type hierarchy
Used by
Element diggs:Shell
Model
Children diggs:surfaceMembers, diggs:uncertainty
Attributes
QName Type Use Annotation
aggregationType gml:AggregationType optional
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="ShellType">
  <annotation>
    <documentation>Extended type based on AbstractVolumeType. Adds elements for shell type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:ShellBaseType">
      <sequence>
        <element minOccurs="1" ref="diggs:surfaceMembers"/>
        <element minOccurs="0" name="uncertainty" type="diggs:UncertaintyPropertyType">
          <annotation>
            <documentation>The uncertainty property.</documentation>
          </annotation>
        </element>
      </sequence>
      <attributeGroup ref="gml:AggregationAttributeGroup"/>
    </extension>
  </complexContent>
</complexType>
