Complex Type diggs:MultiCurveType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractGeometricAggregateType. Adds elements for multi curve type definition.

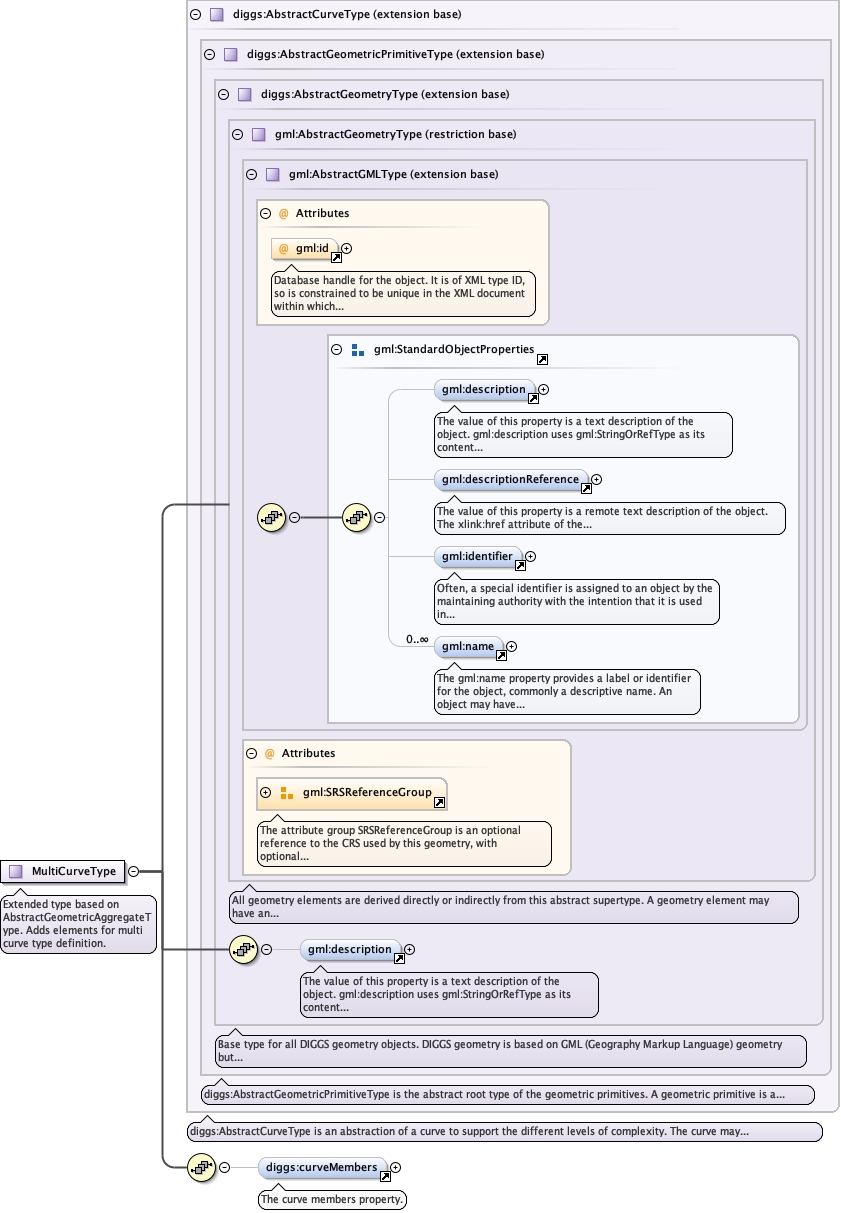

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionCore_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#http___diggsml.org_schemas_3_AbstractGeometryTypeCore_xsd_Complex_Type_diggs_AbstractGeometricPrimitiveType.tmp#AbstractGeometricPrimitiveTypeCore_xsd_Complex_Type_diggs_AbstractCurveType.tmp#AbstractCurveTypeExtSamplingFeatures_xsd_Element_diggs_curveMembers.tmp#http___diggsml.org_schemas_3_curveMembers
Type extension of diggs:AbstractCurveType
Type hierarchy
Used by
Element diggs:MultiCurve
Model
gml:description{0,1} , diggs:curveMembers{0,1}
Children diggs:curveMembers, gml:description
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="MultiCurveType">
  <annotation>
    <documentation>Extended type based on AbstractGeometricAggregateType. Adds elements for multi curve type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractCurveType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" ref="diggs:curveMembers"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
