Namespace http://diggsml.org/schemas/3
Annotations
An object that contains a system of color observations.

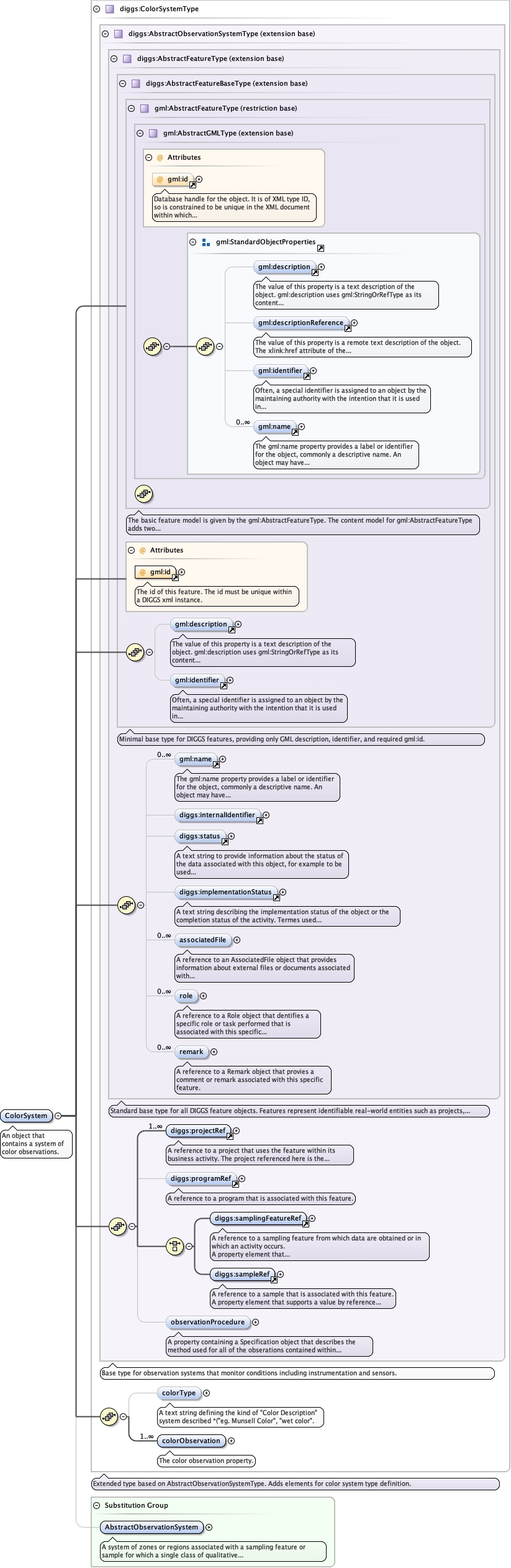

Diagram
Type diggs:ColorSystemType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:projectRef+ ,
diggs:programRef{0,1} , (
diggs:samplingFeatureRef |
diggs:sampleRef ) ,
diggs:observationProcedure{0,1} ,
diggs:colorType{0,1} ,
diggs:colorObservation+
Children diggs:associatedFile diggs:colorObservation diggs:colorType diggs:implementationStatus diggs:internalIdentifier diggs:observationProcedure diggs:programRef diggs:projectRef diggs:remark diggs:role diggs:sampleRef diggs:samplingFeatureRef diggs:status gml:description gml:identifier gml:name
Instance
<diggs:ColorSystem gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:projectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:projectRef>
<diggs:programRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:programRef>
<diggs:samplingFeatureRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </diggs:samplingFeatureRef>
<diggs:sampleRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" percentage= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </diggs:sampleRef>
<diggs:observationProcedure xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:observationProcedure>
<diggs:colorType codeSpace= "" > {0,1} </diggs:colorType>
<diggs:colorObservation > {1,unbounded} </diggs:colorObservation>
</diggs:ColorSystem>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "ColorSystem" substitutionGroup= "diggs:AbstractObservationSystem" type= "diggs:ColorSystemType" >
<annotation >
<documentation > An object that contains a system of color observations. </documentation>
</annotation>
</element>
