Element diggs_geo:MembraneInfo
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object that contains properties about the membrane used in a triaxial test procedure.

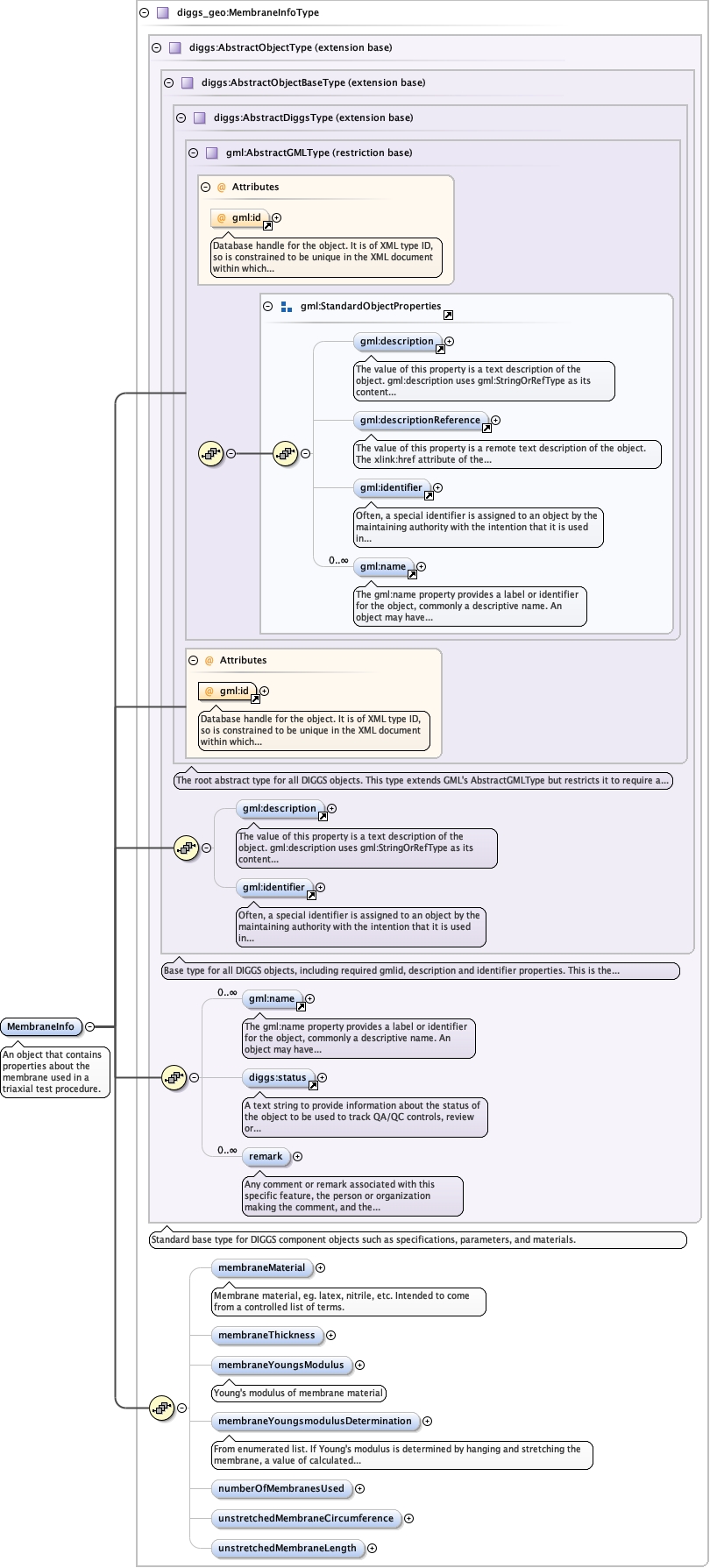

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_MembraneInfoType.tmp#http___diggsml.org_schemas_3_geotechnical_MembraneInfoType_membraneMaterialDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_MembraneInfoType.tmp#http___diggsml.org_schemas_3_geotechnical_MembraneInfoType_membraneThicknessDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_MembraneInfoType.tmp#http___diggsml.org_schemas_3_geotechnical_MembraneInfoType_membraneYoungsModulusDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_MembraneInfoType.tmp#http___diggsml.org_schemas_3_geotechnical_MembraneInfoType_membraneYoungsmodulusDeterminationDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_MembraneInfoType.tmp#http___diggsml.org_schemas_3_geotechnical_MembraneInfoType_numberOfMembranesUsedDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_MembraneInfoType.tmp#http___diggsml.org_schemas_3_geotechnical_MembraneInfoType_unstretchedMembraneCircumferenceDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_MembraneInfoType.tmp#http___diggsml.org_schemas_3_geotechnical_MembraneInfoType_unstretchedMembraneLengthDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_MembraneInfoType.tmp#http___diggsml.org_schemas_3_geotechnical_MembraneInfoType
Type diggs_geo:MembraneInfoType
Type hierarchy
Properties
content complex
abstract false
Used by
Complex Type diggs_geo:MembraneInfoPropertyType
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs_geo:membraneMaterial{0,1} , diggs_geo:membraneThickness{0,1} , diggs_geo:membraneYoungsModulus{0,1} , diggs_geo:membraneYoungsmodulusDetermination{0,1} , diggs_geo:numberOfMembranesUsed{0,1} , diggs_geo:unstretchedMembraneCircumference{0,1} , diggs_geo:unstretchedMembraneLength{0,1}
Children diggs:remark, diggs:status, diggs_geo:membraneMaterial, diggs_geo:membraneThickness, diggs_geo:membraneYoungsModulus, diggs_geo:membraneYoungsmodulusDetermination, diggs_geo:numberOfMembranesUsed, diggs_geo:unstretchedMembraneCircumference, diggs_geo:unstretchedMembraneLength, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:MembraneInfo gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs_geo:membraneMaterial codeSpace="">{0,1}</diggs_geo:membraneMaterial>
  <diggs_geo:membraneThickness howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:membraneThickness>
  <diggs_geo:membraneYoungsModulus howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:membraneYoungsModulus>
  <diggs_geo:membraneYoungsmodulusDetermination>{0,1}</diggs_geo:membraneYoungsmodulusDetermination>
  <diggs_geo:numberOfMembranesUsed>{0,1}</diggs_geo:numberOfMembranesUsed>
  <diggs_geo:unstretchedMembraneCircumference howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:unstretchedMembraneCircumference>
  <diggs_geo:unstretchedMembraneLength howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:unstretchedMembraneLength>
</diggs_geo:MembraneInfo>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="false" name="MembraneInfo" type="diggs_geo:MembraneInfoType">
  <annotation>
    <documentation>An object that contains properties about the membrane used in a triaxial test procedure.</documentation>
  </annotation>
</element>
