Element diggs_geo:LabCBRTestTrial
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object containing properties of a single increment within a lab California Bearing Ratio test procedure.

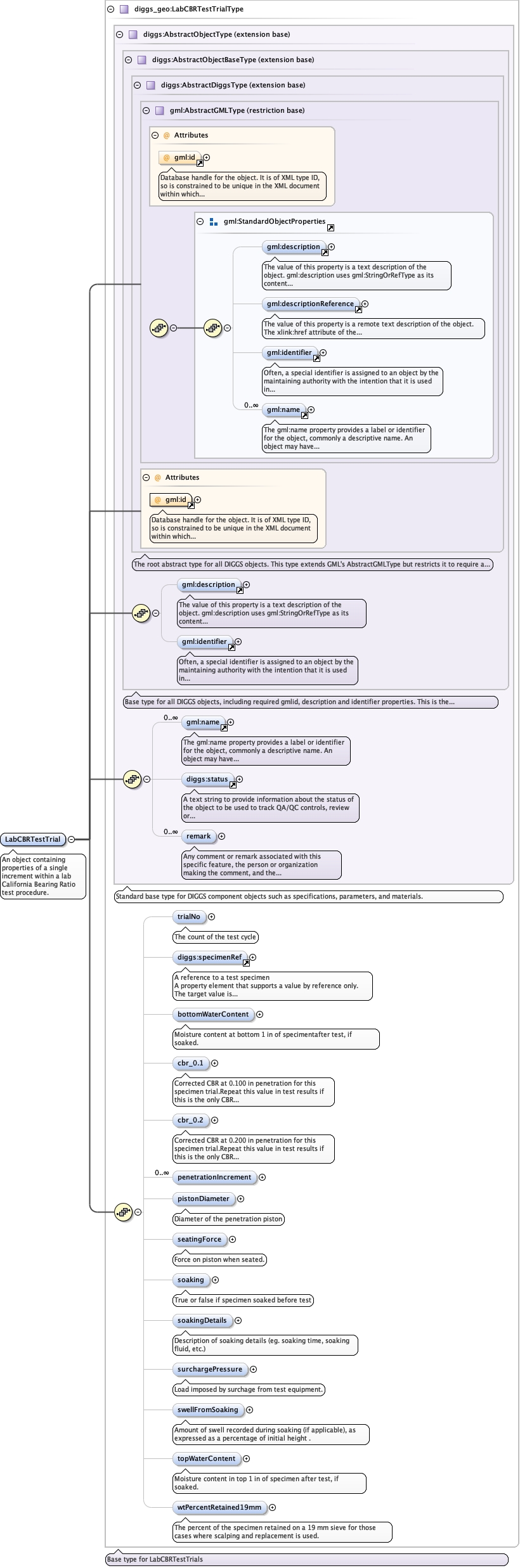

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_trialNoCommon_xsd_Element_diggs_specimenRef.tmp#specimenRefDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_bottomWaterContentDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_cbr_0.1Diggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_cbr_0.2Diggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_penetrationIncrementDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_pistonDiameterDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_seatingForceDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_soakingDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_soakingDetailsDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_surchargePressureDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_swellFromSoakingDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_topWaterContentDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType_wtPercentRetained19mmDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_LabCBRTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_LabCBRTestTrialType
Type diggs_geo:LabCBRTestTrialType
Type hierarchy
Properties
content complex
abstract false
Used by
Complex Type diggs_geo:LabCBRTestTrialPropertyType
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs_geo:trialNo{0,1} , diggs:specimenRef{0,1} , diggs_geo:bottomWaterContent{0,1} , diggs_geo:cbr_0.1{0,1} , diggs_geo:cbr_0.2{0,1} , diggs_geo:penetrationIncrement* , diggs_geo:pistonDiameter{0,1} , diggs_geo:seatingForce{0,1} , diggs_geo:soaking{0,1} , diggs_geo:soakingDetails{0,1} , diggs_geo:surchargePressure{0,1} , diggs_geo:swellFromSoaking{0,1} , diggs_geo:topWaterContent{0,1} , diggs_geo:wtPercentRetained19mm{0,1}
Children diggs:remark, diggs:specimenRef, diggs:status, diggs_geo:bottomWaterContent, diggs_geo:cbr_0.1, diggs_geo:cbr_0.2, diggs_geo:penetrationIncrement, diggs_geo:pistonDiameter, diggs_geo:seatingForce, diggs_geo:soaking, diggs_geo:soakingDetails, diggs_geo:surchargePressure, diggs_geo:swellFromSoaking, diggs_geo:topWaterContent, diggs_geo:trialNo, diggs_geo:wtPercentRetained19mm, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:LabCBRTestTrial gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs_geo:trialNo>{0,1}</diggs_geo:trialNo>
  <diggs:specimenRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:specimenRef>
  <diggs_geo:bottomWaterContent howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:bottomWaterContent>
  <diggs_geo:cbr_0.1 howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:cbr_0.1>
  <diggs_geo:cbr_0.2 howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:cbr_0.2>
  <diggs_geo:penetrationIncrement>{0,unbounded}</diggs_geo:penetrationIncrement>
  <diggs_geo:pistonDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:pistonDiameter>
  <diggs_geo:seatingForce howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:seatingForce>
  <diggs_geo:soaking>{0,1}</diggs_geo:soaking>
  <diggs_geo:soakingDetails>{0,1}</diggs_geo:soakingDetails>
  <diggs_geo:surchargePressure howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:surchargePressure>
  <diggs_geo:swellFromSoaking howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:swellFromSoaking>
  <diggs_geo:topWaterContent howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:topWaterContent>
  <diggs_geo:wtPercentRetained19mm howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:wtPercentRetained19mm>
</diggs_geo:LabCBRTestTrial>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="LabCBRTestTrial" type="diggs_geo:LabCBRTestTrialType" abstract="false">
  <annotation>
    <documentation>An object containing properties of a single increment within a lab California Bearing Ratio test procedure.</documentation>
  </annotation>
</element>
