Element diggs_geo:Hydrometer
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object containing properties that define the hydrometer portion of a particle size test procedure.

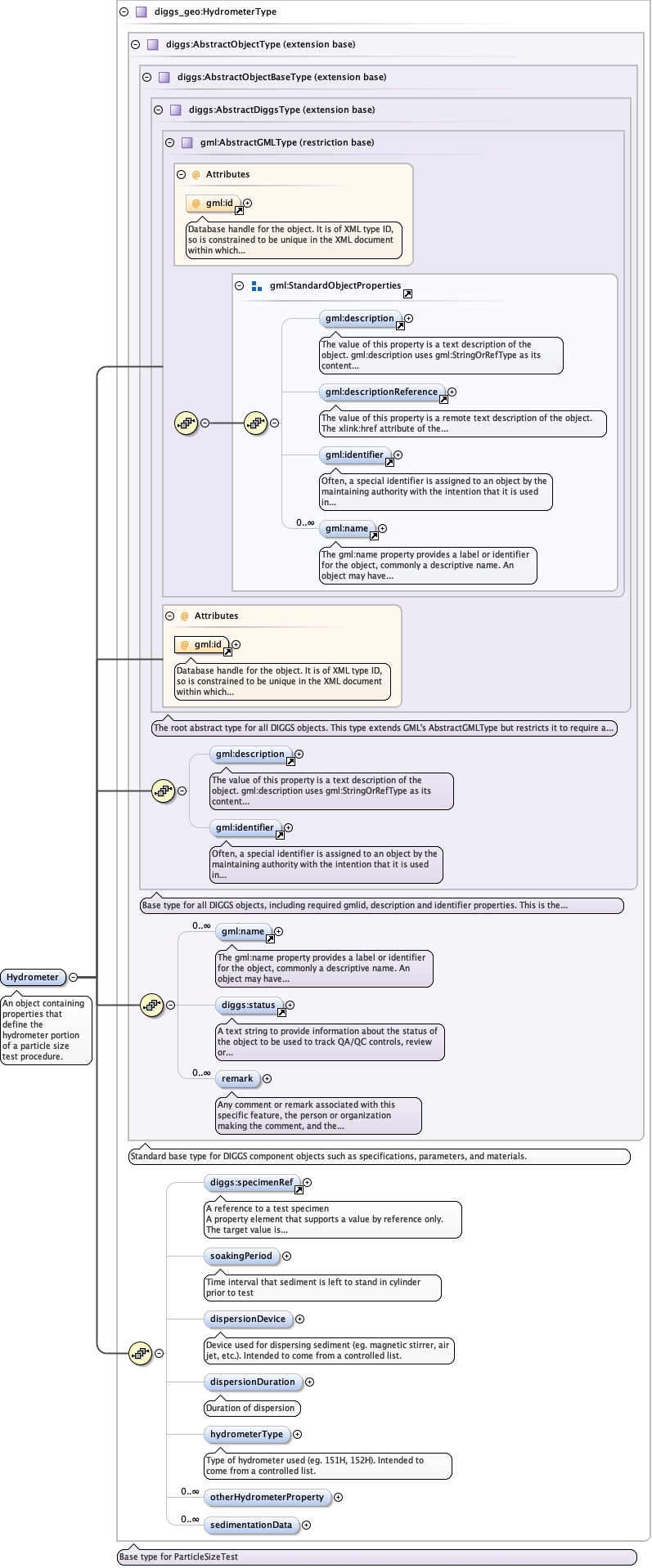

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Element_diggs_specimenRef.tmp#specimenRefDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_HydrometerType.tmp#http___diggsml.org_schemas_3_geotechnical_HydrometerType_soakingPeriodDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_HydrometerType.tmp#http___diggsml.org_schemas_3_geotechnical_HydrometerType_dispersionDeviceDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_HydrometerType.tmp#http___diggsml.org_schemas_3_geotechnical_HydrometerType_dispersionDurationDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_HydrometerType.tmp#http___diggsml.org_schemas_3_geotechnical_HydrometerType_hydrometerTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_HydrometerType.tmp#http___diggsml.org_schemas_3_geotechnical_HydrometerType_otherHydrometerPropertyDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_HydrometerType.tmp#http___diggsml.org_schemas_3_geotechnical_HydrometerType_sedimentationDataDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_HydrometerType.tmp#http___diggsml.org_schemas_3_geotechnical_HydrometerType
Type diggs_geo:HydrometerType
Type hierarchy
Properties
content complex
Used by
Complex Type diggs_geo:HydrometerPropertyType
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:specimenRef{0,1} , diggs_geo:soakingPeriod{0,1} , diggs_geo:dispersionDevice{0,1} , diggs_geo:dispersionDuration{0,1} , diggs_geo:hydrometerType{0,1} , diggs_geo:otherHydrometerProperty* , diggs_geo:sedimentationData*
Children diggs:remark, diggs:specimenRef, diggs:status, diggs_geo:dispersionDevice, diggs_geo:dispersionDuration, diggs_geo:hydrometerType, diggs_geo:otherHydrometerProperty, diggs_geo:sedimentationData, diggs_geo:soakingPeriod, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:Hydrometer gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:specimenRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:specimenRef>
  <diggs_geo:soakingPeriod>{0,1}</diggs_geo:soakingPeriod>
  <diggs_geo:dispersionDevice codeSpace="">{0,1}</diggs_geo:dispersionDevice>
  <diggs_geo:dispersionDuration howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:dispersionDuration>
  <diggs_geo:hydrometerType codeSpace="">{0,1}</diggs_geo:hydrometerType>
  <diggs_geo:otherHydrometerProperty>{0,unbounded}</diggs_geo:otherHydrometerProperty>
  <diggs_geo:sedimentationData>{0,unbounded}</diggs_geo:sedimentationData>
</diggs_geo:Hydrometer>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Hydrometer" type="diggs_geo:HydrometerType">
  <annotation>
    <documentation>An object containing properties that define the hydrometer portion of a particle size test procedure.</documentation>
  </annotation>
</element>
