Element diggs:WellOpening
Namespace http://diggsml.org/schemas/3
Annotations

An object containing properties that define the location and
characteristics of a well screen or perforations within a Well sampling
feature.

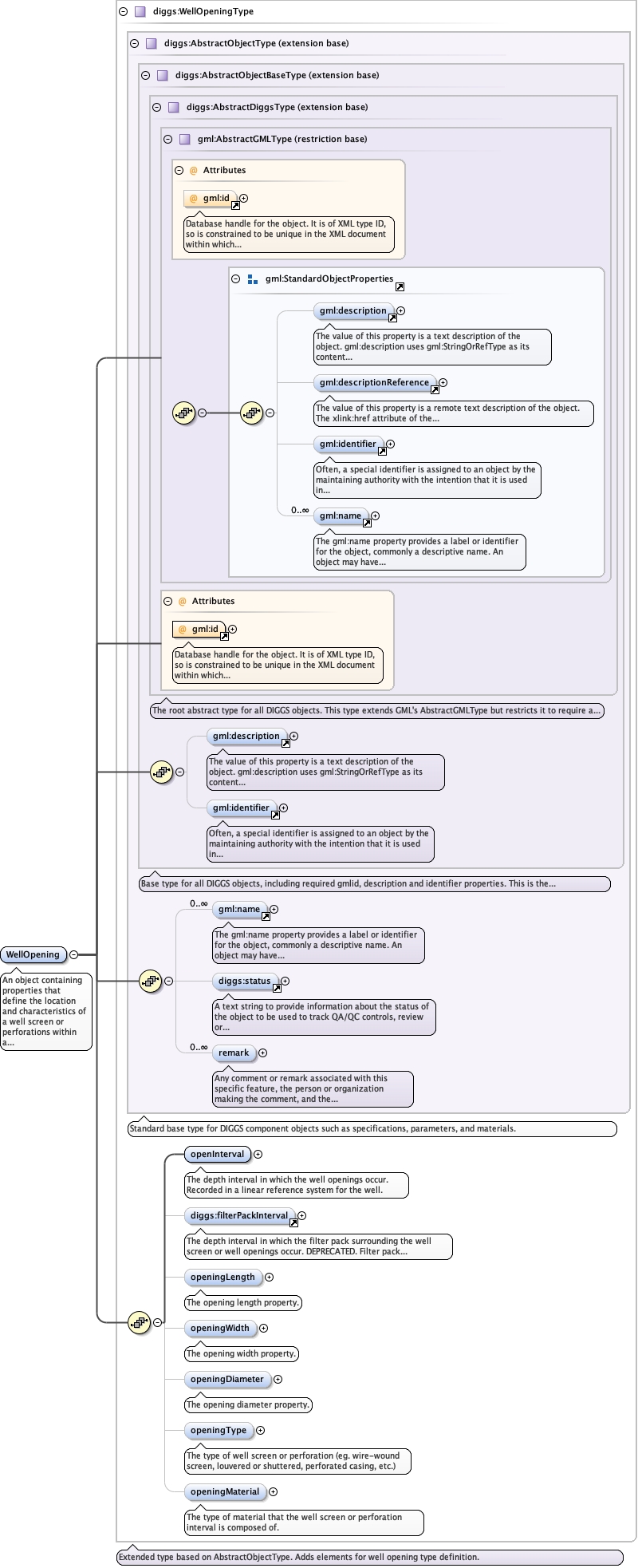

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCore_xsd_Complex_Type_diggs_WellOpeningType.tmp#WellOpeningType_openIntervalCore_xsd_Element_diggs_filterPackInterval.tmp#filterPackIntervalCore_xsd_Complex_Type_diggs_WellOpeningType.tmp#WellOpeningType_openingLengthCore_xsd_Complex_Type_diggs_WellOpeningType.tmp#WellOpeningType_openingWidthCore_xsd_Complex_Type_diggs_WellOpeningType.tmp#WellOpeningType_openingDiameterCore_xsd_Complex_Type_diggs_WellOpeningType.tmp#WellOpeningType_openingTypeCore_xsd_Complex_Type_diggs_WellOpeningType.tmp#WellOpeningType_openingMaterialCore_xsd_Complex_Type_diggs_WellOpeningType.tmp#WellOpeningType
Type diggs:WellOpeningType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:filterPackInterval, diggs:openInterval, diggs:openingDiameter, diggs:openingLength, diggs:openingMaterial, diggs:openingType, diggs:openingWidth, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:WellOpening gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:openInterval xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,1}</diggs:openInterval>
  <diggs:filterPackInterval xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:filterPackInterval>
  <diggs:openingLength howDetermined="" qualifier="" uom="">{0,1}</diggs:openingLength>
  <diggs:openingWidth howDetermined="" qualifier="" uom="">{0,1}</diggs:openingWidth>
  <diggs:openingDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:openingDiameter>
  <diggs:openingType codeSpace="">{0,1}</diggs:openingType>
  <diggs:openingMaterial codeSpace="">{0,1}</diggs:openingMaterial>
</diggs:WellOpening>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="WellOpening" type="diggs:WellOpeningType">
  <annotation>
    <documentation>An object containing properties that define the location and characteristics of a well screen or perforations within a Well sampling feature.</documentation>
  </annotation>
</element>
