Schema documentation for component diggs:Lithology

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:Lithology

Namespace

http://diggsml.org/schemas/3

Annotations

An object containing the properties of a lithology
description.

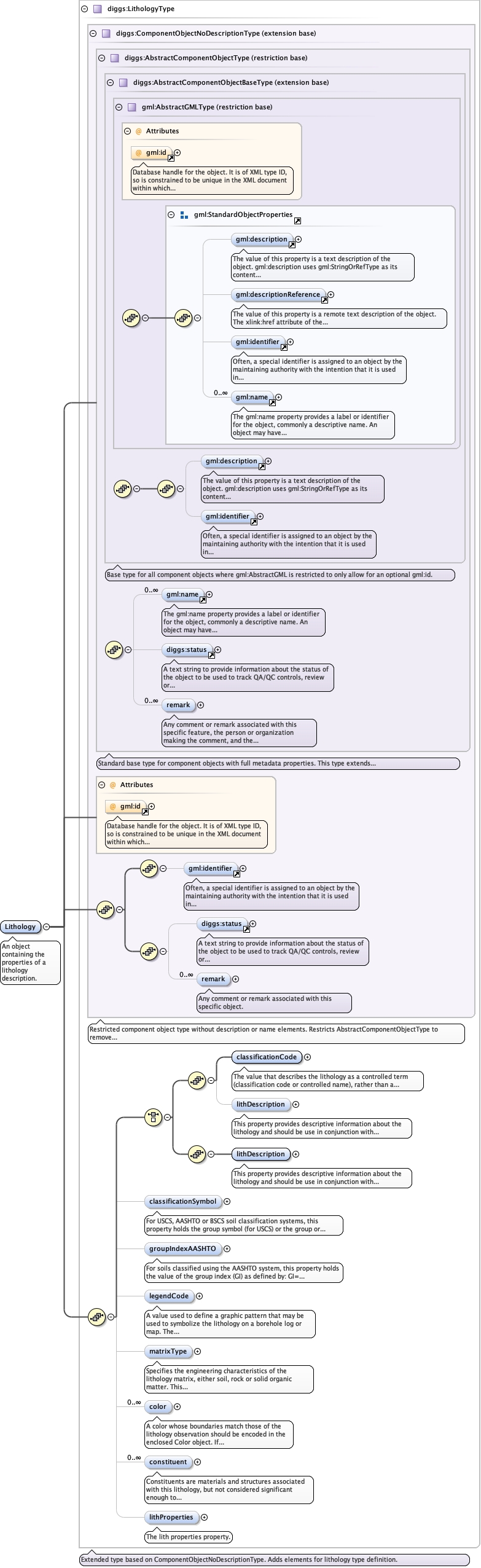

Diagram

Type

diggs:LithologyType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractComponentObjectBaseType
  - diggs:AbstractComponentObjectType
    - diggs:ComponentObjectNoDescriptionType
      - diggs:LithologyType

Properties

content	complex
mixed	false

Used by

Complex Type

diggs:LithologyPropertyType

Model

gml:identifier{0,1} , diggs:status{0,1} , diggs:remark* , ((diggs:classificationCode , diggs:lithDescription{0,1}) | (diggs:lithDescription)) , diggs:classificationSymbol{0,1} , diggs:groupIndexAASHTO{0,1} , diggs:legendCode{0,1} , diggs:matrixType{0,1} , diggs:color* , diggs:constituent* , diggs:lithProperties{0,1}

Children

diggs:classificationCode, diggs:classificationSymbol, diggs:color, diggs:constituent, diggs:groupIndexAASHTO, diggs:legendCode, diggs:lithDescription, diggs:lithProperties, diggs:matrixType, diggs:remark, diggs:status, gml:identifier

Instance

<diggs:Lithology gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:classificationCode codeSpace="" howDetermined="">{1,1}</diggs:classificationCode>
  <diggs:lithDescription howDetermined="" legendCode="">{0,1}</diggs:lithDescription>
  <diggs:lithDescription howDetermined="" legendCode="">{1,1}</diggs:lithDescription>
  <diggs:classificationSymbol codeSpace="">{0,1}</diggs:classificationSymbol>
  <diggs:groupIndexAASHTO>{0,1}</diggs:groupIndexAASHTO>
  <diggs:legendCode codeSpace="" xlink:href="" mimeType="">{0,1}</diggs:legendCode>
  <diggs:matrixType>{0,1}</diggs:matrixType>
  <diggs:color>{0,unbounded}</diggs:color>
  <diggs:constituent>{0,unbounded}</diggs:constituent>
  <diggs:lithProperties>{0,1}</diggs:lithProperties>
</diggs:Lithology>

Attributes

QName

Type

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="Lithology" type="diggs:LithologyType">
  <annotation>
    <documentation>An object containing the properties of a lithology description.</documentation>
  </annotation>
</element>
