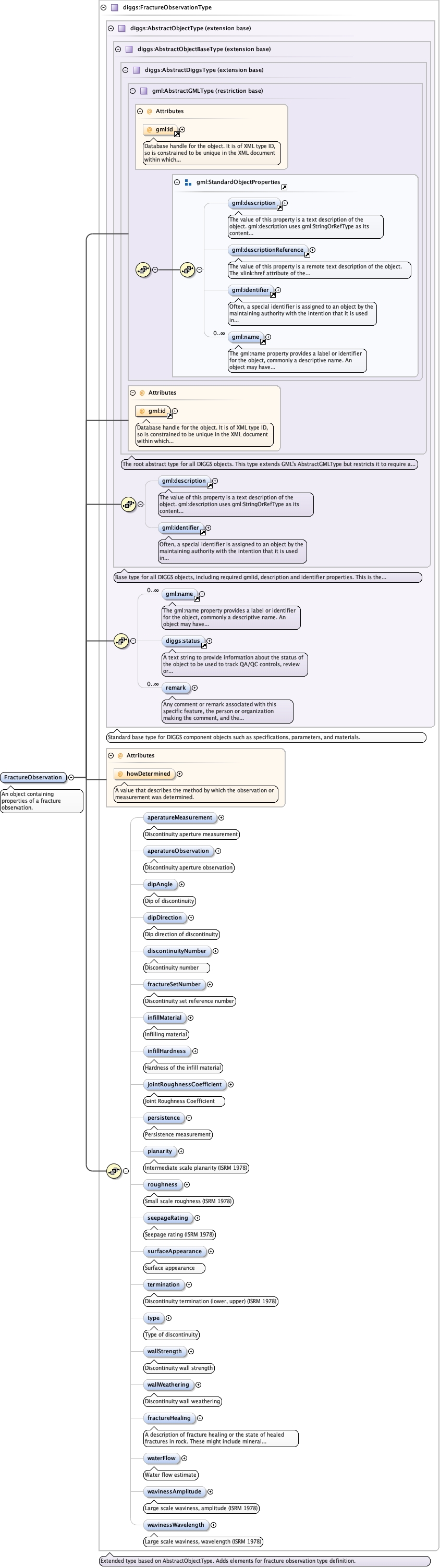

Schema documentation for component diggs:FractureObservation

<diggs:FractureObservation howDetermined="" gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:aperatureMeasurement howDetermined="" qualifier="" uom="">{0,1}</diggs:aperatureMeasurement>
  <diggs:aperatureObservation>{0,1}</diggs:aperatureObservation>
  <diggs:dipAngle apparent="" howDetermined="" qualifier="" uom="">{0,1}</diggs:dipAngle>
  <diggs:dipDirection howDetermined="" qualifier="" uom="">{0,1}</diggs:dipDirection>
  <diggs:discontinuityNumber>{0,1}</diggs:discontinuityNumber>
  <diggs:fractureSetNumber>{0,1}</diggs:fractureSetNumber>
  <diggs:infillMaterial codeSpace="">{0,1}</diggs:infillMaterial>
  <diggs:infillHardness codeSpace="">{0,1}</diggs:infillHardness>
  <diggs:jointRoughnessCoefficient>{0,1}</diggs:jointRoughnessCoefficient>
  <diggs:persistence>{0,1}</diggs:persistence>
  <diggs:planarity codeSpace="">{0,1}</diggs:planarity>
  <diggs:roughness codeSpace="">{0,1}</diggs:roughness>
  <diggs:seepageRating codeSpace="">{0,1}</diggs:seepageRating>
  <diggs:surfaceAppearance>{0,1}</diggs:surfaceAppearance>
  <diggs:termination codeSpace="">{0,1}</diggs:termination>
  <diggs:type codeSpace="">{0,1}</diggs:type>
  <diggs:wallStrength howDetermined="" qualifier="" uom="">{0,1}</diggs:wallStrength>
  <diggs:wallWeathering codeSpace="">{0,1}</diggs:wallWeathering>
  <diggs:fractureHealing>{0,1}</diggs:fractureHealing>
  <diggs:waterFlow howDetermined="" qualifier="" uom="">{0,1}</diggs:waterFlow>
  <diggs:wavinessAmplitude howDetermined="" qualifier="" uom="">{0,1}</diggs:wavinessAmplitude>
  <diggs:wavinessWavelength howDetermined="" qualifier="" uom="">{0,1}</diggs:wavinessWavelength>
</diggs:FractureObservation>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="FractureObservation" type="diggs:FractureObservationType"> <annotation> <documentation>An object containing properties of a fracture observation.</documentation> </annotation> </element>

Showing:
