Element diggs:ComponentLithology
Namespace http://diggsml.org/schemas/3
Annotations

A component lithology is a distict lithologic type that occurs within a
lithologic zone (observation) and not descxribed as part of the primary lithology.
This primarily occurs in situations where the zone is interbedded and complex enough
that separating out each lithologic layer is not practical, or where one lithology
occurs as inclusion within another.

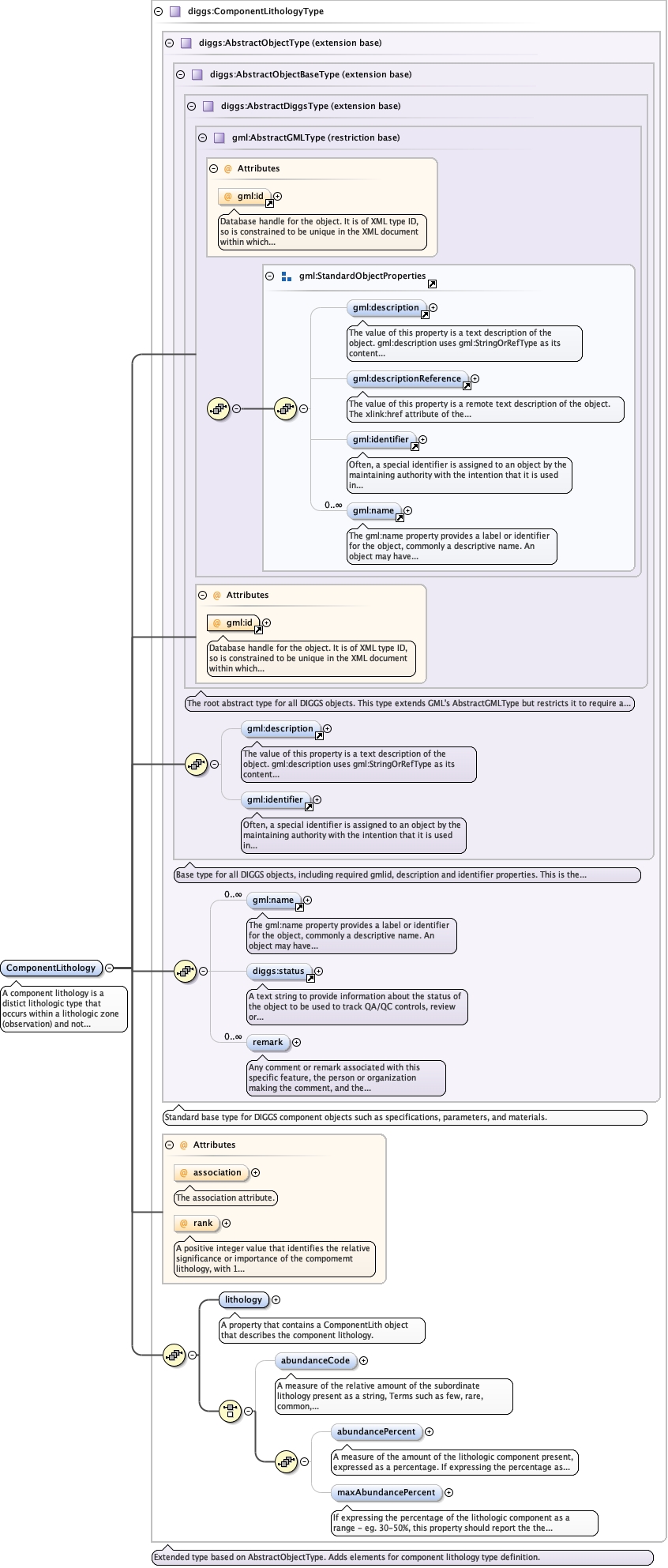

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_associationCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_rankCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_lithologyCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_abundanceCodeCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_abundancePercentCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_maxAbundancePercentCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType
Type diggs:ComponentLithologyType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:abundanceCode, diggs:abundancePercent, diggs:lithology, diggs:maxAbundancePercent, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:ComponentLithology association="" gml:id="" rank="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:lithology>{1,1}</diggs:lithology>
  <diggs:abundanceCode codeSpace="">{0,1}</diggs:abundanceCode>
  <diggs:abundancePercent approximator="" byVolume="" uom="">{0,1}</diggs:abundancePercent>
  <diggs:maxAbundancePercent approximator="" byVolume="" uom="">{0,1}</diggs:maxAbundancePercent>
</diggs:ComponentLithology>
Attributes
QName Type Use Annotation
association diggs:LithologyCharacterEnumExtType optional
The association attribute.
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
rank positiveInteger optional
A positive integer value that identifies the relative
significance or importance of the compomemt lithology, with 1 signifying
the highest rank. Using this attribute eliminates possible ambiguity
when using abundanceCode to infer significance.
Source

<element name="ComponentLithology" type="diggs:ComponentLithologyType">
  <annotation>
    <documentation>A component lithology is a distict lithologic type that occurs within a lithologic zone (observation) and not descxribed as part of the primary lithology. This primarily occurs in situations where the zone is interbedded and complex enough that separating out each lithologic layer is not practical, or where one lithology occurs as inclusion within another.</documentation>
  </annotation>
</element>
