Element diggs:ComponentLith
Namespace http://diggsml.org/schemas/3
Annotations

A metadata object that holds the values of local coordinates for the
reference point of the associated feature. This object is used to carry information
about the location of a feature in its original local reference system if not
originally recorded in a well-known geographic or projected CRS (with these new
values entered into the feature's reference point property.

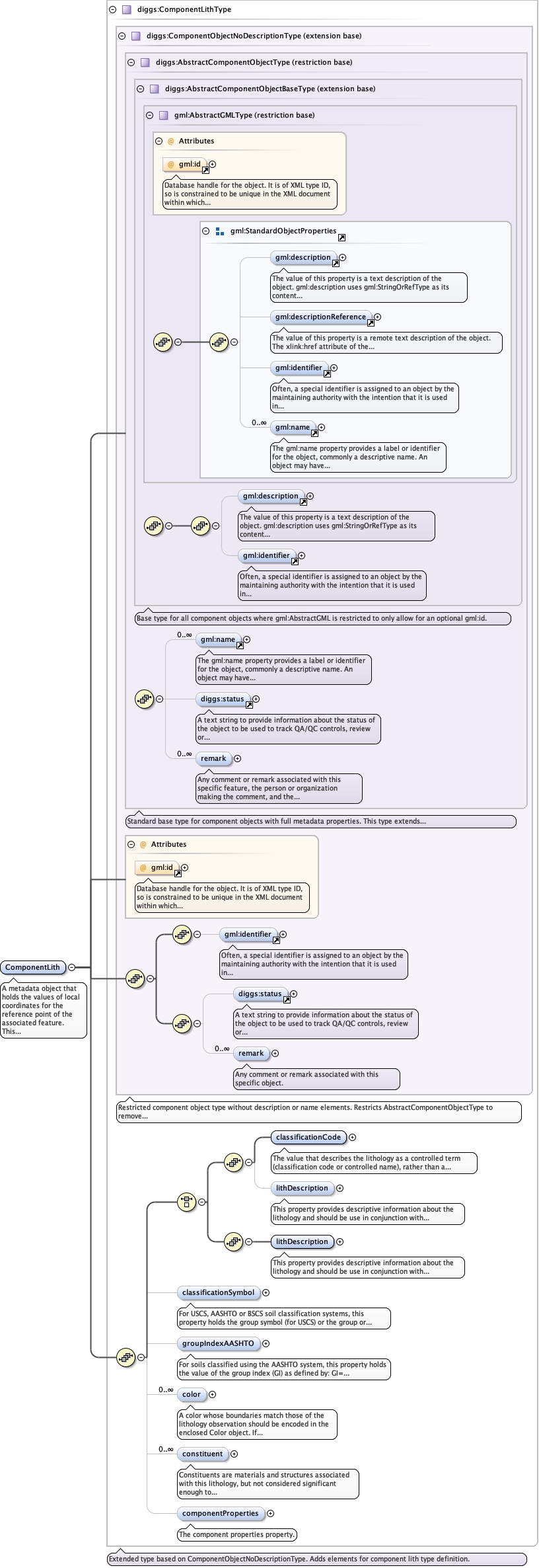

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Complex_Type_diggs_ComponentObjectNoDescriptionType.tmp#ComponentObjectNoDescriptionType_remarkCommon_xsd_Complex_Type_diggs_ComponentObjectNoDescriptionType.tmp#ComponentObjectNoDescriptionTypeCore_xsd_Complex_Type_diggs_ComponentLithType.tmp#ComponentLithType_classificationCodeCore_xsd_Complex_Type_diggs_ComponentLithType.tmp#ComponentLithType_lithDescriptionCore_xsd_Complex_Type_diggs_ComponentLithType.tmp#ComponentLithType_classificationSymbolCore_xsd_Complex_Type_diggs_ComponentLithType.tmp#ComponentLithType_groupIndexAASHTOCore_xsd_Complex_Type_diggs_ComponentLithType.tmp#ComponentLithType_colorCore_xsd_Complex_Type_diggs_ComponentLithType.tmp#ComponentLithType_constituentCore_xsd_Complex_Type_diggs_ComponentLithType.tmp#ComponentLithType_componentPropertiesCore_xsd_Complex_Type_diggs_ComponentLithType.tmp#ComponentLithType
Type diggs:ComponentLithType
Type hierarchy
Properties
content complex
abstract false
mixed false
Used by
Model
Children diggs:classificationCode, diggs:classificationSymbol, diggs:color, diggs:componentProperties, diggs:constituent, diggs:groupIndexAASHTO, diggs:lithDescription, diggs:remark, diggs:status, gml:identifier
Instance

<diggs:ComponentLith gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:classificationCode codeSpace="" howDetermined="">{1,1}</diggs:classificationCode>
  <diggs:lithDescription howDetermined="" legendCode="">{0,1}</diggs:lithDescription>
  <diggs:lithDescription howDetermined="" legendCode="">{1,1}</diggs:lithDescription>
  <diggs:classificationSymbol codeSpace="">{0,1}</diggs:classificationSymbol>
  <diggs:groupIndexAASHTO>{0,1}</diggs:groupIndexAASHTO>
  <diggs:color>{0,unbounded}</diggs:color>
  <diggs:constituent>{0,unbounded}</diggs:constituent>
  <diggs:componentProperties>{0,1}</diggs:componentProperties>
</diggs:ComponentLith>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="false" name="ComponentLith" type="diggs:ComponentLithType">
  <annotation>
    <documentation>A metadata object that holds the values of local coordinates for the reference point of the associated feature. This object is used to carry information about the location of a feature in its original local reference system if not originally recorded in a well-known geographic or projected CRS (with these new values entered into the feature's reference point property.</documentation>
  </annotation>
</element>
