Namespace http://diggsml.org/schemas/3
Annotations
An object containing properties pertaining to the chain of custody of a
sample.

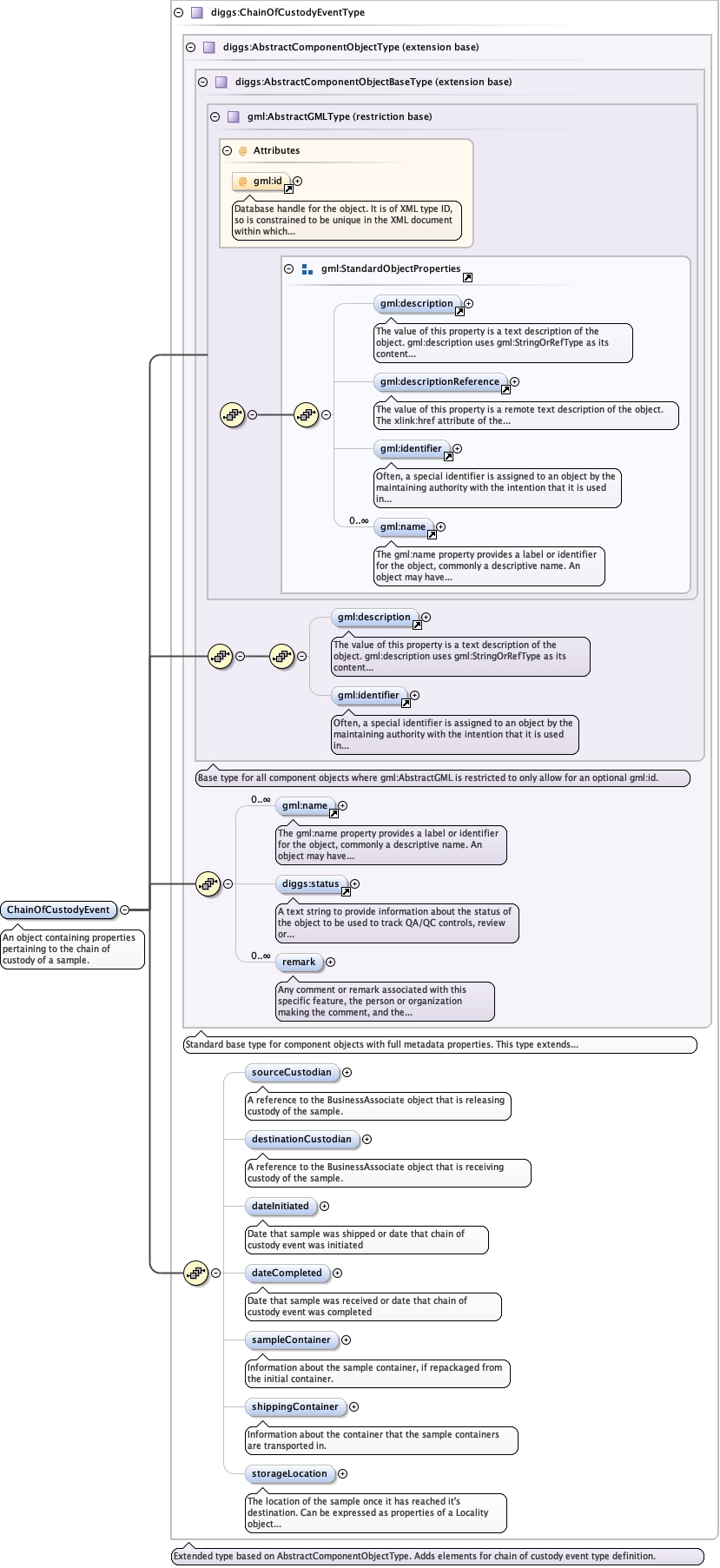

Diagram
Type diggs:ChainOfCustodyEventType
Type hierarchy
Properties
content
complex
mixed
false
Used by
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:status{0,1} ,
diggs:remark* ,
diggs:sourceCustodian{0,1} ,
diggs:destinationCustodian{0,1} ,
diggs:dateInitiated{0,1} ,
diggs:dateCompleted{0,1} ,
diggs:sampleContainer{0,1} ,
diggs:shippingContainer{0,1} ,
diggs:storageLocation{0,1}
Children diggs:dateCompleted diggs:dateInitiated diggs:destinationCustodian diggs:remark diggs:sampleContainer diggs:shippingContainer diggs:sourceCustodian diggs:status diggs:storageLocation gml:description gml:identifier gml:name
Instance
<diggs:ChainOfCustodyEvent gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:sourceCustodian xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:sourceCustodian>
<diggs:destinationCustodian xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:destinationCustodian>
<diggs:dateInitiated calendarEraName= "" frame= "#ISO-8601" indeterminatePosition= "" > {0,1} </diggs:dateInitiated>
<diggs:dateCompleted calendarEraName= "" frame= "#ISO-8601" indeterminatePosition= "" > {0,1} </diggs:dateCompleted>
<diggs:sampleContainer xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:sampleContainer>
<diggs:shippingContainer xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:shippingContainer>
<diggs:storageLocation > {0,1} </diggs:storageLocation>
</diggs:ChainOfCustodyEvent>
Attributes
QName
Type
Use
Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "ChainOfCustodyEvent" type= "diggs:ChainOfCustodyEventType" >
<annotation >
<documentation > An object containing properties pertaining to the chain of custody of a sample. </documentation>
</annotation>
</element>
