Element diggs:BoreholeDiameter
Namespace http://diggsml.org/schemas/3
Annotations

An object that carries the diameter of a borehole and its
location.

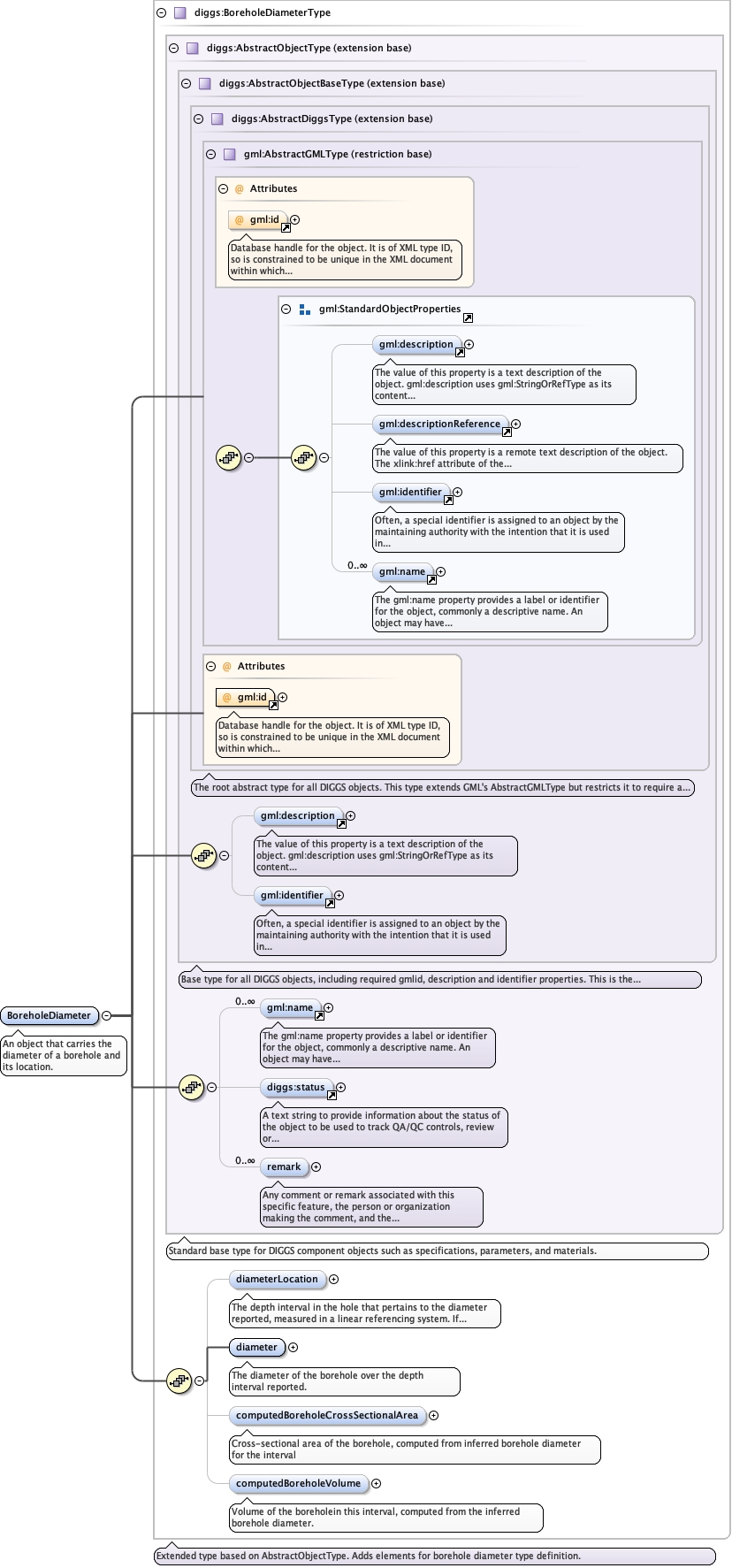

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCore_xsd_Complex_Type_diggs_BoreholeDiameterType.tmp#BoreholeDiameterType_diameterLocationCore_xsd_Complex_Type_diggs_BoreholeDiameterType.tmp#BoreholeDiameterType_diameterCore_xsd_Complex_Type_diggs_BoreholeDiameterType.tmp#BoreholeDiameterType_computedBoreholeCrossSectionalAreaCore_xsd_Complex_Type_diggs_BoreholeDiameterType.tmp#BoreholeDiameterType_computedBoreholeVolumeCore_xsd_Complex_Type_diggs_BoreholeDiameterType.tmp#BoreholeDiameterType
Type diggs:BoreholeDiameterType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:computedBoreholeCrossSectionalArea, diggs:computedBoreholeVolume, diggs:diameter, diggs:diameterLocation, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:BoreholeDiameter gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:diameterLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:diameterLocation>
  <diggs:diameter howDetermined="" qualifier="" uom="">{1,1}</diggs:diameter>
  <diggs:computedBoreholeCrossSectionalArea howDetermined="" qualifier="" uom="">{0,1}</diggs:computedBoreholeCrossSectionalArea>
  <diggs:computedBoreholeVolume howDetermined="" qualifier="" uom="">{0,1}</diggs:computedBoreholeVolume>
</diggs:BoreholeDiameter>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="BoreholeDiameter" type="diggs:BoreholeDiameterType">
  <annotation>
    <documentation>An object that carries the diameter of a borehole and its location.</documentation>
  </annotation>
</element>
