Element diggs:Advancement
Namespace http://diggsml.org/schemas/3
Annotations

Object that carries drill advancement properties.

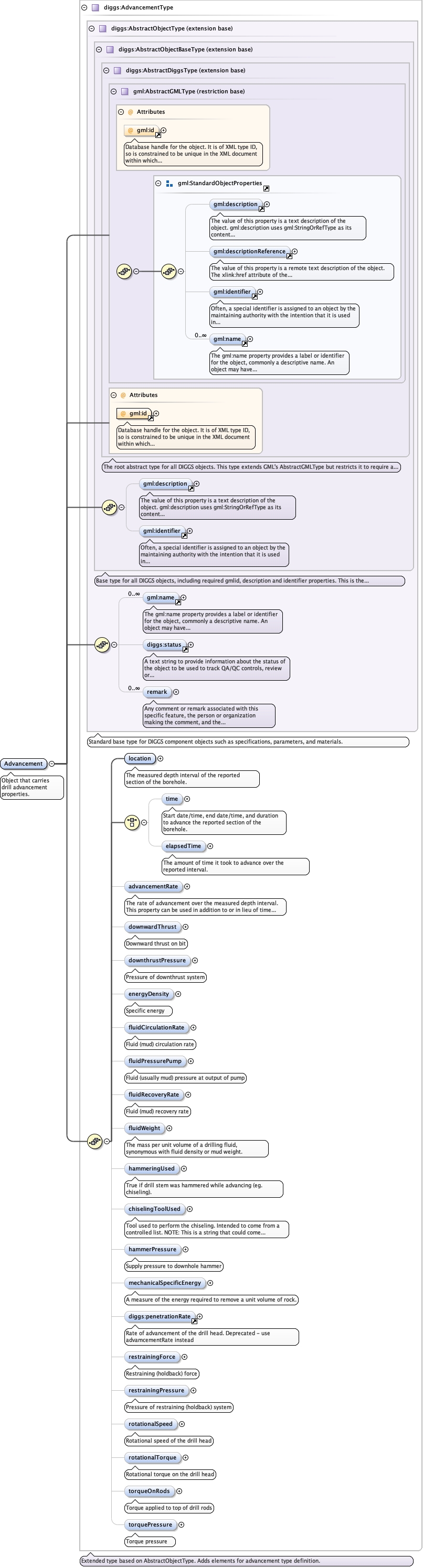

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_locationCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_timeCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_elapsedTimeCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_advancementRateCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_downwardThrustCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_downthrustPressureCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_energyDensityCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_fluidCirculationRateCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_fluidPressurePumpCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_fluidRecoveryRateCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_fluidWeightCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_hammeringUsedCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_chiselingToolUsedCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_hammerPressureCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_mechanicalSpecificEnergyCore_xsd_Element_diggs_penetrationRate.tmp#penetrationRateCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_restrainingForceCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_restrainingPressureCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_rotationalSpeedCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_rotationalTorqueCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_torqueOnRodsCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_torquePressureCore_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType
Type diggs:AdvancementType
Type hierarchy
Properties
content complex
mixed false
Used by
Model
Children diggs:advancementRate, diggs:chiselingToolUsed, diggs:downthrustPressure, diggs:downwardThrust, diggs:elapsedTime, diggs:energyDensity, diggs:fluidCirculationRate, diggs:fluidPressurePump, diggs:fluidRecoveryRate, diggs:fluidWeight, diggs:hammerPressure, diggs:hammeringUsed, diggs:location, diggs:mechanicalSpecificEnergy, diggs:penetrationRate, diggs:remark, diggs:restrainingForce, diggs:restrainingPressure, diggs:rotationalSpeed, diggs:rotationalTorque, diggs:status, diggs:time, diggs:torqueOnRods, diggs:torquePressure, gml:description, gml:identifier, gml:name
Instance

<diggs:Advancement gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,1}</diggs:location>
  <diggs:time>{0,1}</diggs:time>
  <diggs:elapsedTime howDetermined="" qualifier="" uom="">{0,1}</diggs:elapsedTime>
  <diggs:advancementRate howDetermined="" qualifier="" uom="">{0,1}</diggs:advancementRate>
  <diggs:downwardThrust howDetermined="" qualifier="" uom="">{0,1}</diggs:downwardThrust>
  <diggs:downthrustPressure howDetermined="" qualifier="" uom="">{0,1}</diggs:downthrustPressure>
  <diggs:energyDensity howDetermined="" qualifier="" uom="">{0,1}</diggs:energyDensity>
  <diggs:fluidCirculationRate howDetermined="" qualifier="" uom="">{0,1}</diggs:fluidCirculationRate>
  <diggs:fluidPressurePump howDetermined="" qualifier="" uom="">{0,1}</diggs:fluidPressurePump>
  <diggs:fluidRecoveryRate howDetermined="" qualifier="" uom="">{0,1}</diggs:fluidRecoveryRate>
  <diggs:fluidWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:fluidWeight>
  <diggs:hammeringUsed>{0,1}</diggs:hammeringUsed>
  <diggs:chiselingToolUsed xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:chiselingToolUsed>
  <diggs:hammerPressure howDetermined="" qualifier="" uom="">{0,1}</diggs:hammerPressure>
  <diggs:mechanicalSpecificEnergy howDetermined="" qualifier="" uom="">{0,1}</diggs:mechanicalSpecificEnergy>
  <diggs:penetrationRate howDetermined="" qualifier="" uom="">{0,1}</diggs:penetrationRate>
  <diggs:restrainingForce howDetermined="" qualifier="" uom="">{0,1}</diggs:restrainingForce>
  <diggs:restrainingPressure howDetermined="" qualifier="" uom="">{0,1}</diggs:restrainingPressure>
  <diggs:rotationalSpeed howDetermined="" qualifier="" uom="">{0,1}</diggs:rotationalSpeed>
  <diggs:rotationalTorque howDetermined="" qualifier="" uom="">{0,1}</diggs:rotationalTorque>
  <diggs:torqueOnRods howDetermined="" qualifier="" uom="">{0,1}</diggs:torqueOnRods>
  <diggs:torquePressure howDetermined="" qualifier="" uom="">{0,1}</diggs:torquePressure>
</diggs:Advancement>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Advancement" type="diggs:AdvancementType">
  <annotation>
    <documentation>Object that carries drill advancement properties.</documentation>
  </annotation>
</element>
