Schema documentation for component diggs:ResultSetType

Showing:

Annotations

Diagrams

Model

Source

Used by

Complex Type diggs:ResultSetType

Namespace

http://diggsml.org/schemas/3

Annotations

Complex type: ResultSetType

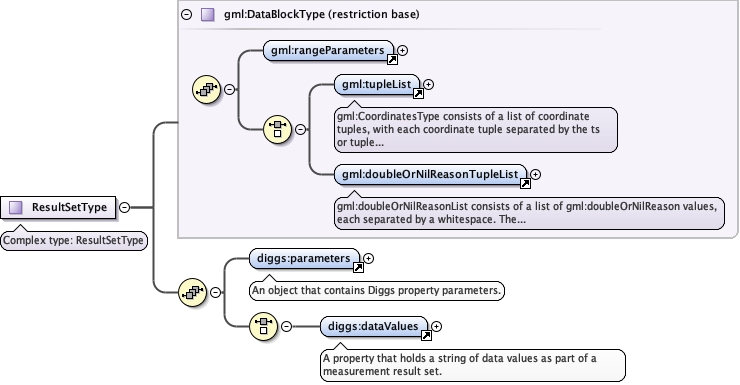

Diagram

Type

restriction of gml:DataBlockType

Type hierarchy

gml:DataBlockType
- diggs:ResultSetType

Used by

Element

diggs:ResultSet

Model

diggs:parameters , (diggs:dataValues)

Children

diggs:dataValues, diggs:parameters

Source

<complexType name="ResultSetType">
  <annotation>
    <documentation>Complex type: ResultSetType</documentation>
  </annotation>
  <complexContent>
    <restriction base="gml:DataBlockType">
      <sequence>
        <element ref="diggs:parameters" minOccurs="1"/>
        <choice>
          <element ref="diggs:dataValues"/>
        </choice>
      </sequence>
    </restriction>
  </complexContent>
</complexType>
