Schema documentation for component diggs:mimeType

Showing:

Annotations

Diagrams

Model

Properties

Source

Used by

Element diggs:ResultFileType / diggs:mimeType

Namespace

http://diggsml.org/schemas/3

Annotations

Type or classification of the mime.

Diagram

Type

diggs:MimeTypeEnumExtType

Properties

content	simple
minOccurs	0

Source

<element minOccurs="0" name="mimeType" type="diggs:MimeTypeEnumExtType">
  <annotation>
    <documentation>Type or classification of the mime.</documentation>
  </annotation>
</element>

Element diggs:ResultFileType / diggs:compression

Namespace

http://diggsml.org/schemas/3

Annotations

The compression property.

Diagram

Type

anyURI

Properties

content	simple
minOccurs	0

Source

<element minOccurs="0" name="compression" type="anyURI">
  <annotation>
    <documentation>The compression property.</documentation>
  </annotation>
</element>

Complex Type diggs:ResultFileType

Namespace

http://diggsml.org/schemas/3

Annotations

Complex type: ResultFileType

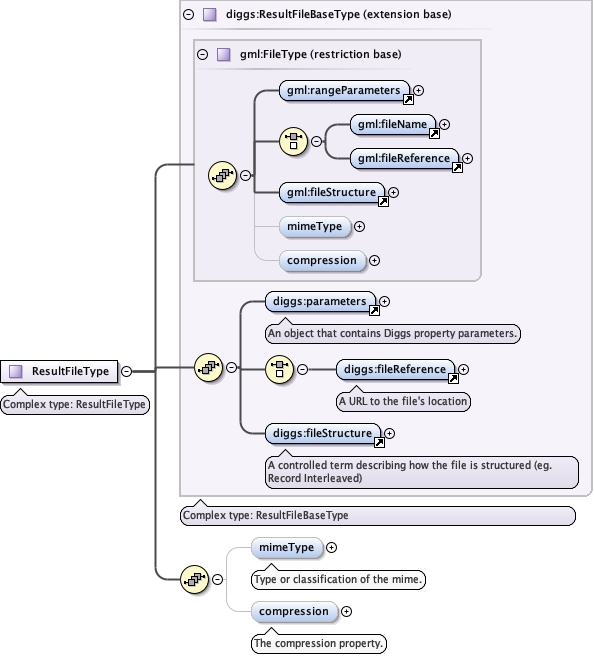

Diagram

Type

extension of diggs:ResultFileBaseType

Type hierarchy

gml:FileType
- diggs:ResultFileBaseType
  - diggs:ResultFileType

Used by

Element

diggs:ResultFile

Model

diggs:parameters , (diggs:fileReference) , diggs:fileStructure , diggs:mimeType{0,1} , diggs:compression{0,1}

Children

diggs:compression, diggs:fileReference, diggs:fileStructure, diggs:mimeType, diggs:parameters

Source

<complexType name="ResultFileType">
  <annotation>
    <documentation>Complex type: ResultFileType</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:ResultFileBaseType">
      <sequence>
        <element minOccurs="0" name="mimeType" type="diggs:MimeTypeEnumExtType">
          <annotation>
            <documentation>Type or classification of the mime.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="compression" type="anyURI">
          <annotation>
            <documentation>The compression property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
