Element diggs:AbstractProgram
Namespace http://diggsml.org/schemas/3
Annotations

This feature serves as the head of a substitution group for program
features that contain properties about the design, specifications, and (optionally)
post-construction performance results from a collection of construction activities
that occur within samplingFeatures. While designed to accommodate construction data,
this property could also contain program objects that include planning and
specification data for exploration efforts.

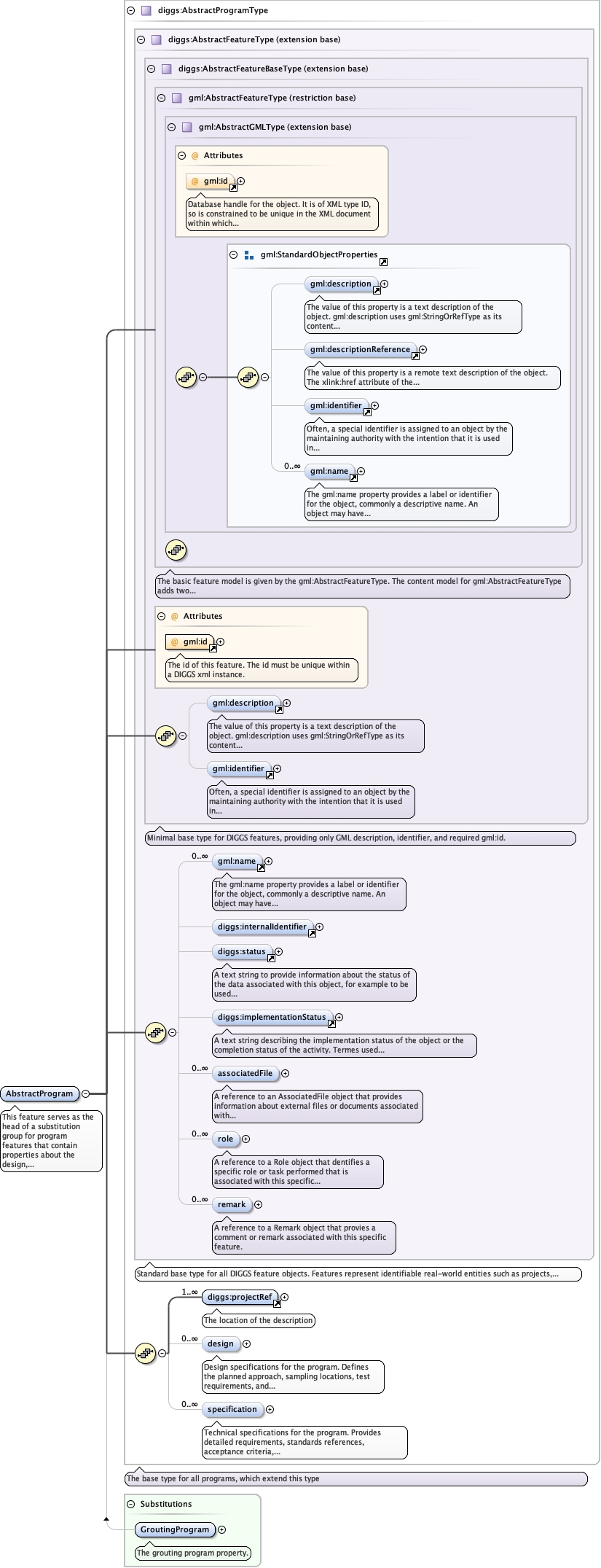

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramType.tmp#AbstractProgramType_designAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramType.tmp#AbstractProgramType_specificationAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramType.tmp#AbstractProgramTypeGrouting_xsd_Element_diggs_GroutingProgram.tmp#GroutingProgram
Type diggs:AbstractProgramType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Used by
Model
Children diggs:associatedFile, diggs:design, diggs:implementationStatus, diggs:internalIdentifier, diggs:projectRef, diggs:remark, diggs:role, diggs:specification, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractProgram gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:projectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:projectRef>
  <diggs:design>{0,unbounded}</diggs:design>
  <diggs:specification>{0,unbounded}</diggs:specification>
</diggs:AbstractProgram>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="true" name="AbstractProgram" type="diggs:AbstractProgramType">
  <annotation>
    <documentation>This feature serves as the head of a substitution group for program features that contain properties about the design, specifications, and (optionally) post-construction performance results from a collection of construction activities that occur within samplingFeatures. While designed to accommodate construction data, this property could also contain program objects that include planning and specification data for exploration efforts.</documentation>
  </annotation>
</element>
